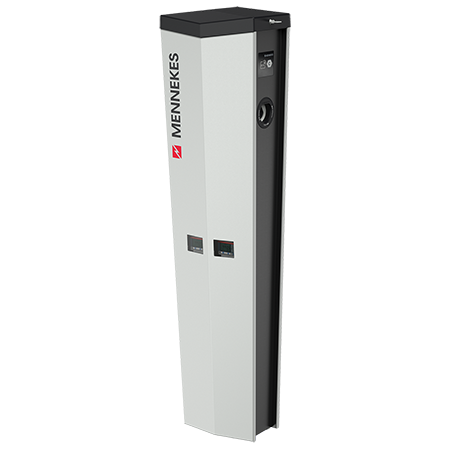

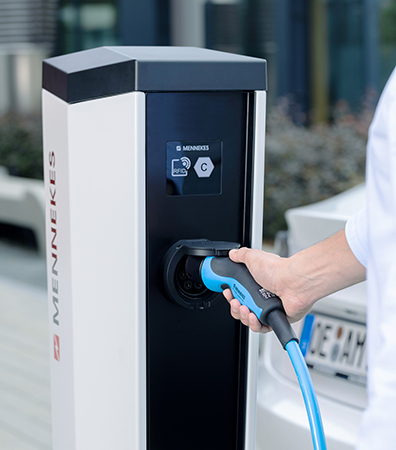

AMEDIO Professional PnC 22 T2S
AMEDIO provides a compelling total package for charging infrastructure of the future: satisfying exacting requirements for security, offering ease of use, networking capacity that enables the implementation of billing and payment services that meet a given set of requirements, system monitoring, and load management are all combined in one high-quality solution. Integrating the optional “Plug & Charge” (PnC) feature adds even more convenience to the charging process. AMEDIO has been specifically developed for use by companies or business owners/operators who want to establish charging infrastructure for their employees and customers.

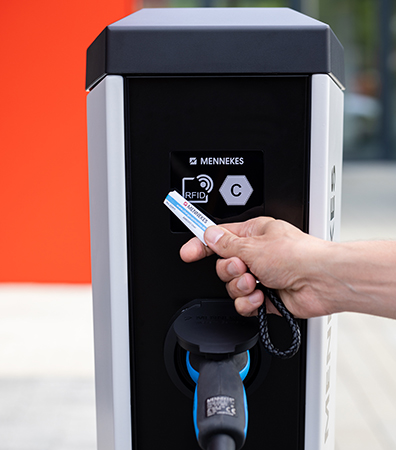

- Access with RFID charging card
- Backend
- Load management
- Energy management
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Details
General data
| Authorisation |
Autostart (without access protection) RFID Backend |
|---|---|
| ISO 15118 |
Plug & Charge |
| Load management |
Downgrade input Static load management Dynamic load management Connection to an external EMS via Modbus TCP and EEBus |
| Networking |
LAN via LAN to external energy management system via LAN to Professional charging systems |
| Protocol backend communication |
OCPP 1.5s OCPP 1.6j OCPP 1.6s |
| Interface backend communication |
via AMEDIO charging systems via LAN |
| Communication with vehicle |
IEC 61851-1 Mode 3 |
| Product colour |
light gray (RAL 7035) |
Electrical data
| Connection |
1 -phase 3 -phase |
|---|---|
| Maximum charging power per charging point |
22 kW |
| Lightning and surge protection device |
Type 2 surge protection device |
| Personal protection |
40 / 0,03A, 4p, type B |
| Line protection |
C-32A, 3p+N, 10kA |
| Integrated power meter |
yes |
Videos
AMEDIO Professional PnC 22 T2S 140622612
