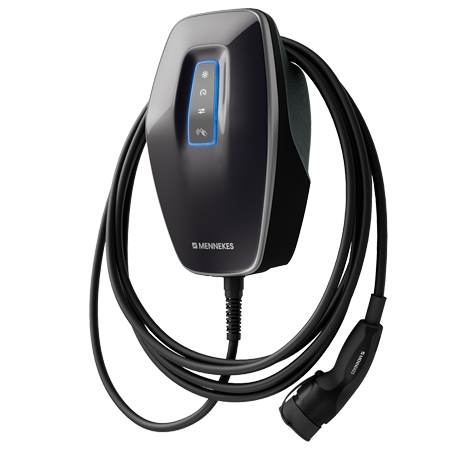

AMTRON® 4You 560 11 C2

Products will be delivered as of September 2024. AMTRON® 4You 560 - the smart charging station for company car billing with app and intelligent PV function. The MENNEKES AMTRON® 4You 560 charger is ideal for billing the electricity charged at home for the company car via the app or alternatively automatically by e-mail. An integrated MID meter (readable from the outside) makes this possible. Compatible with the leading energy management systems, AMTRON® 4You 560 is particularly suitable for PV-optimized charging. Alternatively, PV-optimized charging can also be implemented via an external meter, regardless of the manufacturer. The solar charging mode can be conveniently selected in the app or directly on the charger. Charging can be carried out independently of the PV system manufacturer via an external meter. It supports 1-phase and 3-phase solar charging for dynamic charging capacities from 1.4 to 11 kW. With RFID access protection, the wallbox is protected against unauthorized access. Smart features such as operation via app, coming home function with floor lighting and proximity sensor, interchangeable Front Covers in custom colors and load management make charging convenient. The charging station is WLAN/LAN-capable, ISO 15118 (PnC)-ready and displays the charging status at all times using LEDs. Other features include the permanently attached type 2 charging cable with a length of 7.5 meters and the integrated cable management. The AMTRON® 4Installers app makes configuration easier for installers.
  • Convenient solar charging with electricity billing
  • Access with RFID charging card
  • 4Drivers App
  • Load management
  • Manual company car billing and payment
  • Backend
  • Part no.1315011205BK
  • EAN4015394302285
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Application

Convenient solar charging with electricity billing

Plug device

Permanently connected charging cable (7.5 m)

Authorisation

Autostart (without access protection)

RFID

Backend

IOS / Android App

4Drivers App

Load management

Static load management

Solar charging via an upstream, external energy meter

1- / 3-phase solar charging for charging powers of 1.4 - 11 kW

Connection to an external EMS via Modbus TCP and EEBus

Networking

LAN

WIFI

via LAN to external energy management system

Protocol backend communication

OCPP 1.6j

Interface backend communication

via LAN

Communication with vehicle

IEC 61851-1 Mode 3

Prepared for ISO 15118

Product colour

midnight black

Electrical data
Connection

1 -phasig

3 -phasig

Maximum charging power per charging point

11 kW

Electricity meter (MID compliant)

yes (readable from outside)

Integrated power meter

yes

Mechanical data
Control elements

LED status indicator

Button for switching the charging modes

Proximity sensor

Bottom lighting

Directives
