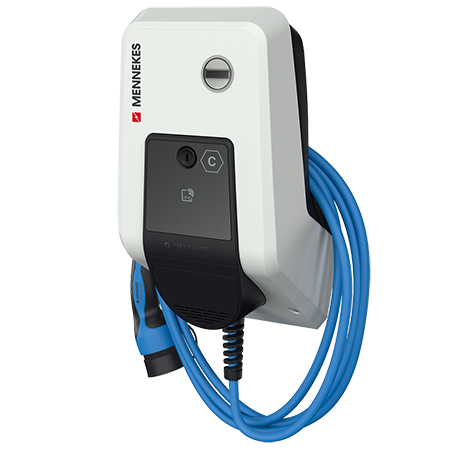

AMTRON® Professional 22 C2

The newly developed AMTRON® Professional products ideally satisfy the requirements for semi-public spaces, including company or customer parking lots, for example. A compelling total package for charging infrastructure of the future: satisfying exacting requirements for security, offering ease of use, networking capacity that enables the implementation of billing and payment services that meet a given set of requirements, system monitoring, and load management are all combined in one solution. Integrating the optional “Plug & Charge” (PnC) feature adds even more convenience to the charging process.

Access with RFID charging card
Load management
Energy management

Direct backend connection
Backend

Part no.1364202
EAN4015394292180

Details

General data

Plug device	Permanently connected charging cable (7.5 m)
Authorisation	Autostart (without access protection) RFID Backend
Load management	Static load management Dynamic load management Connection to an external EMS via Modbus TCP and EEBus
Networking	LAN via LAN to external energy management system via LAN to Professional charging systems
Protocol backend communication	OCPP 1.5s OCPP 1.6j OCPP 1.6s
Interface backend communication	via AMEDIO charging systems via LAN
Communication with vehicle	IEC 61851-1 Mode 3
Product colour	light gray (RAL 7035)

Electrical data

Connection	1 -phase 3 -phase
Maximum charging power per charging point	22 kW
Personal protection	40 / 0,03A, 4p, type A
Line protection	C-32A, 3p+N, 10kA
Electricity meter (MID compliant)	yes (readable from outside)
Integrated power meter	yes
