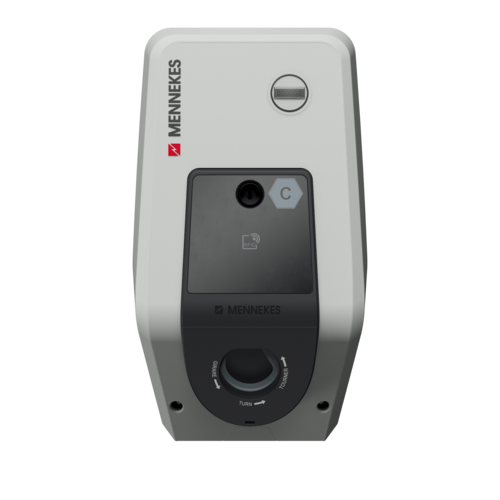

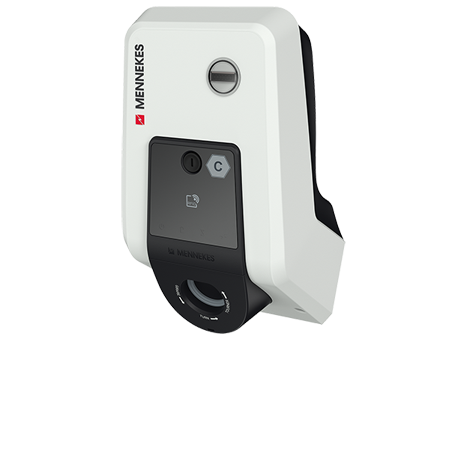

AMTRON® Professional+ E 7,4/22 T2S

The newly developed AMTRON® Professional products ideally satisfy the requirements for semi-public spaces, including company or customer parking lots, for example. A direct connection to a backend system for monitoring and billing and payment services, such as MENNEKES ativo, can be established via the built-in modem of Professional+ Wallbox charging stations. A compelling total package for charging infrastructure of the future: satisfying exacting requirements for security, offering ease of use, networking capacity that enables the implementation of billing and payment services that meet a given set of requirements, system monitoring, and load management are all combined in one solution. Integrating the optional “Plug & Charge” (PnC) feature adds even more convenience to the charging process.

Access with RFID charging card
Load management
Energy management

Direct backend connection
Backend

Part no.1376602
EAN4015394291602

Details

General data

Authorisation	Autostart (without access protection) RFID Backend
Load management	Static load management Dynamic load management Connection to an external EMS via Modbus TCP and EEBus
Networking	via LAN to external energy management system via LAN to Professional charging systems
Protocol backend communication	OCPP 1.5s OCPP 1.6j OCPP 1.6s
Interface backend communication	via mobile radio via LAN
Communication with vehicle	IEC 61851-1 Mode 3
Product colour	light gray (RAL 7035)

Electrical data

Connection	1 -phase 3 -phase
Maximum charging power per charging point	22 kW
Line protection	C-32A, 3p+N, 10kA
Electricity meter (MID compliant)	yes (readable from outside)
Integrated power meter	yes
