MENNEKES AMTRON® Professional TC PnC 22 151622402
MENNEKES AMTRON® Professional TC PnC 22 151622402
MENNEKES AMTRON® Professional TC PnC 22 151622402 #1
MENNEKES AMTRON® Professional TC PnC 22 151622402 #2
MENNEKES AMTRON® Professional TC PnC 22 151622402 #3
MENNEKES AMTRON® Professional TC PnC 22 151622402 #4
MENNEKES AMTRON® Professional TC PnC 22 151622402 images3d

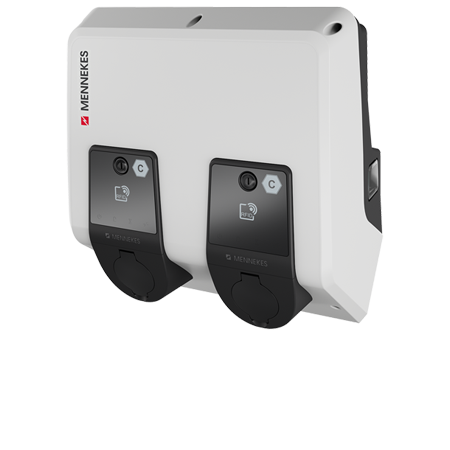

AMTRON® Professional TC PnC 22

The new AMTRON® Professional Twincharge double charging station is suitable for simultaneous charging of two electric vehicles in semi-public and public areas. AMTRON® Professional Twincharge impresses with further highlights in addition to options for intelligent networking, modern energy and load management, optional "Plug & Charge" functionality and professional billing options. Installation and assembly are as easy as can be with the innovative connection box: mount the box, conveniently hang and fasten the charging station, make the connections - done. In addition, all important protective devices are integrated directly in the device and no longer need to be added later during installation. As part of the Professional product family, AMTRON® Professional Twincharge can be combined with the AMTRON® Professional single wallbox and/or the AMEDIO® Professional charging station, depending on individual requirements, and thus offers maximum flexibility when setting up charging infrastructure. The practical connection box is already included in the scope of delivery. It is also available as a separate accessory. The cover for the connection box can be ordered as an accessory if required.
  • Access with RFID charging card
  • Load management
  • Energy management
  • Backend
  • Part no.151622402
  • EAN4015394301660
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Details

General data
Authorisation

Autostart (without access protection)

RFID

Backend

ISO 15118

Plug & Charge

Load management

Downgrade input

Static load management

Dynamic load management

Connection to an external EMS via Modbus TCP and EEBus

Networking

via LAN to external energy management system

via LAN to Professional charging systems

Protocol backend communication

OCPP 1.5s

OCPP 1.6j

OCPP 1.6s

Interface backend communication

via AMEDIO charging systems

via LAN

Communication with vehicle

IEC 61851-1 Mode 3

Product colour

light gray (RAL 7035)

Electrical data
Connection

1 -phase

3 -phase

Maximum charging power per charging point

22 kW

Personal protection

40 / 0,03A, 4p, type A

Line protection

C-32A, 3p+N, 10kA

Electricity meter (MID compliant)

yes (readable from outside)

Integrated power meter

yes

Mechanical data
Control elements

LED status indicator

Multi-function button

Material enclosure

Plastic

Directives
