MENNEKES Type 2 charging cables
For safe charging on the road
As developer of the Type 2 plug, MENNEKES is a pioneer in the field of charging cables and has an extensive product range for Mode 2 and Mode 3 charging cables.
Charging cable type 2 mode 3
The link between electric vehicle and charging station
A Mode 3 charging cable is a connecting cable between the charging station and the electric vehicle. With the MENNEKES Mode 3, Type 2 charging cable, you can easily charge all vehicles with a Type 2 plug - the MENNEKES Type 2 plug is standard in Europe! – Connect to public charging stations or to wallboxes with a charging socket.
MENNEKES charging cables are available in different versions. Whether as in spiralized form or also a straight variant - our charging cables impress due to their robust quality and absolute long-term durability. Plugs and connectors are cast, which means that they can even be run over by a car without breaking. The cables are protected against dust and water. Plugs and connectors have protective flaps as standard in order to reliably prevent contamination and moisture in the interior.

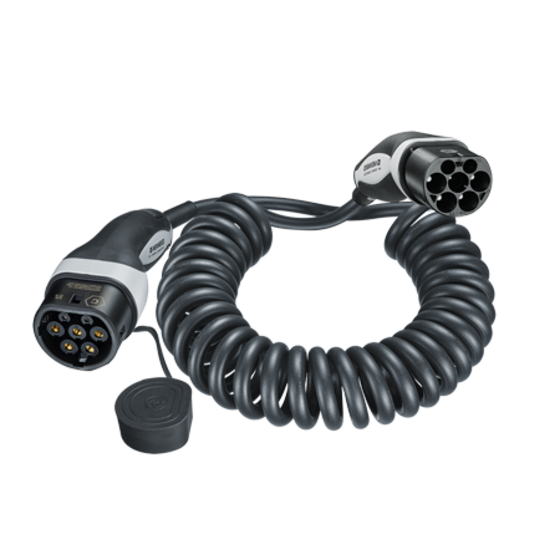

Spiralized charging cable mode 3
The spiralized cable is suitable for all vehicles with type 2 plug. It can be connected to public charging stations / wallboxes with charging socket for charging power up to 11 kW.
Thanks to four meters of cable length, you can charge your car even in hard-to-reach places or over longer distances. Due to its spiralized shape, the cable can be plugged in without touching the ground. Thus, the Type 2 charging cable is well visible when plugged in and does not get dirty. In addition, it has the advantage that it can be stored even more space-saving.

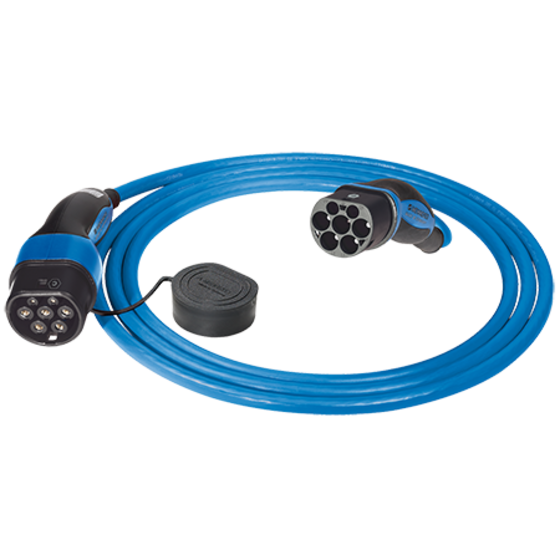

Smooth charging cable mode 3
With the MENNEKES charging cable type 2 you can easily connect all vehicles with type 2 plug to public charging stations or to wallboxes with charging socket. Robust quality and a drive-over safety ensure a long-lasting use. Type 2 is the European standard charging plug developed by MENNEKES. Depending on the variant, charging capacities of up to 22 kW (400 V, 32 A) are possible in private households, depending on the vehicle and the charging station.

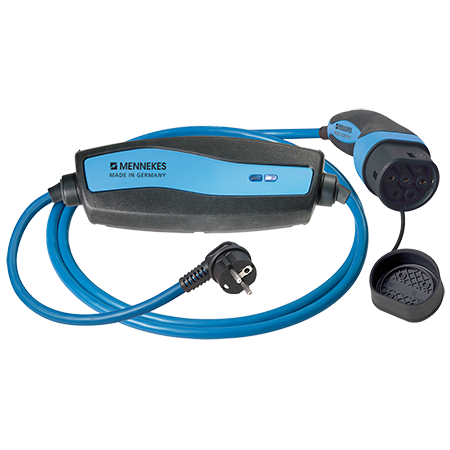

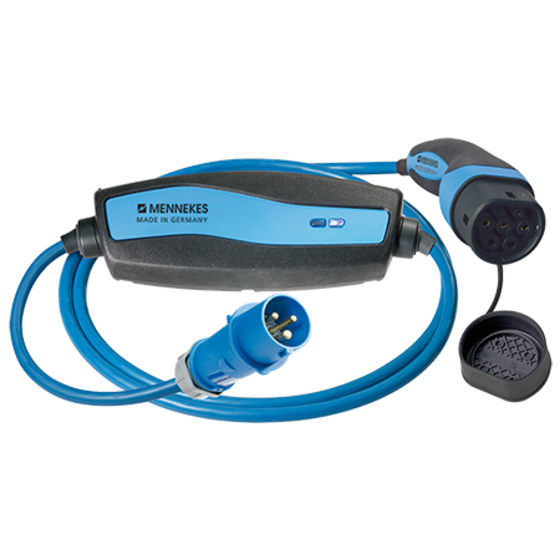

MENNEKES Mode 2 charging cable
Charging at SCHUKO or CEE receptacles
A mobile Mode 2 charging cable, also known as an emergency charging cable, can be used to charge up an electric or hybrid vehicle using any standard electrical outlet (Schuko) or CEE receptacle whenever there is no permanently installed charging station available. In this case, the control unit assumes all safety-related functions such as for example
- a detection for AC and DC fault currents incl. resulting switch-off (if a fault is detected, the unit switches off - it switches back on automatically when the fault is no longer present),
- the multi-stage temperature management and
- the automatic charge current reduction in case of overheating of the Schuko plug or the charging module
Mode 2 charging cables from MENNEKES deliver charging power up to 3.7 kW. They are user-friendly as no further settings need to be made. The enclosure is so robust that it can even be run over by a car. The protection types IP 44 (plug-in devices) and IP 67 (charging module) provide safety against dust and water.
