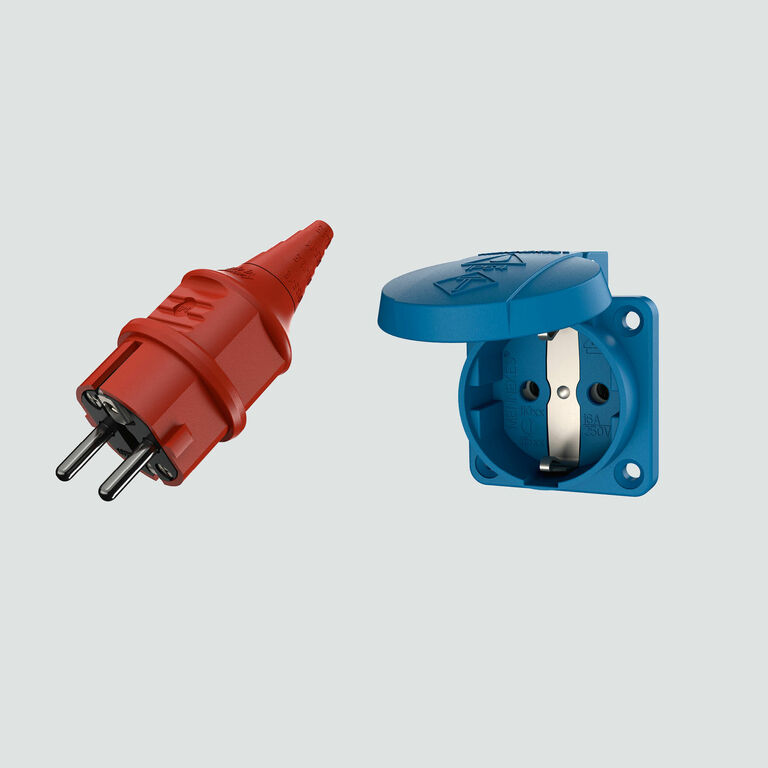

SCHUKO® plugs and sockets
SCHUKO® is an abbreviation for "Schutzkontakt" (protective contact) and refers to a plug system widely used in Germany and other European countries. This system ensures a safe and reliable connection of electrical devices through its protective contact feature. The distinctive feature of SCHUKO® devices is their grounding mechanism: the plug's contact pins are designed to establish an earth connection before the live contacts. This ensures maximum protection against electric shocks.
The hammer symbol
The hammer symbol on SCHUKO® plugs and sockets indicates that the product is "impact-resistant" or "shockproof." This symbol shows that the product is especially durable against mechanical stress. Products with this symbol are ideal for use in harsh environments where increased wear and tear are expected, such as workshops, garages, or construction sites. The impact resistance is achieved through the use of special materials and reinforced construction, making the product more durable and safer

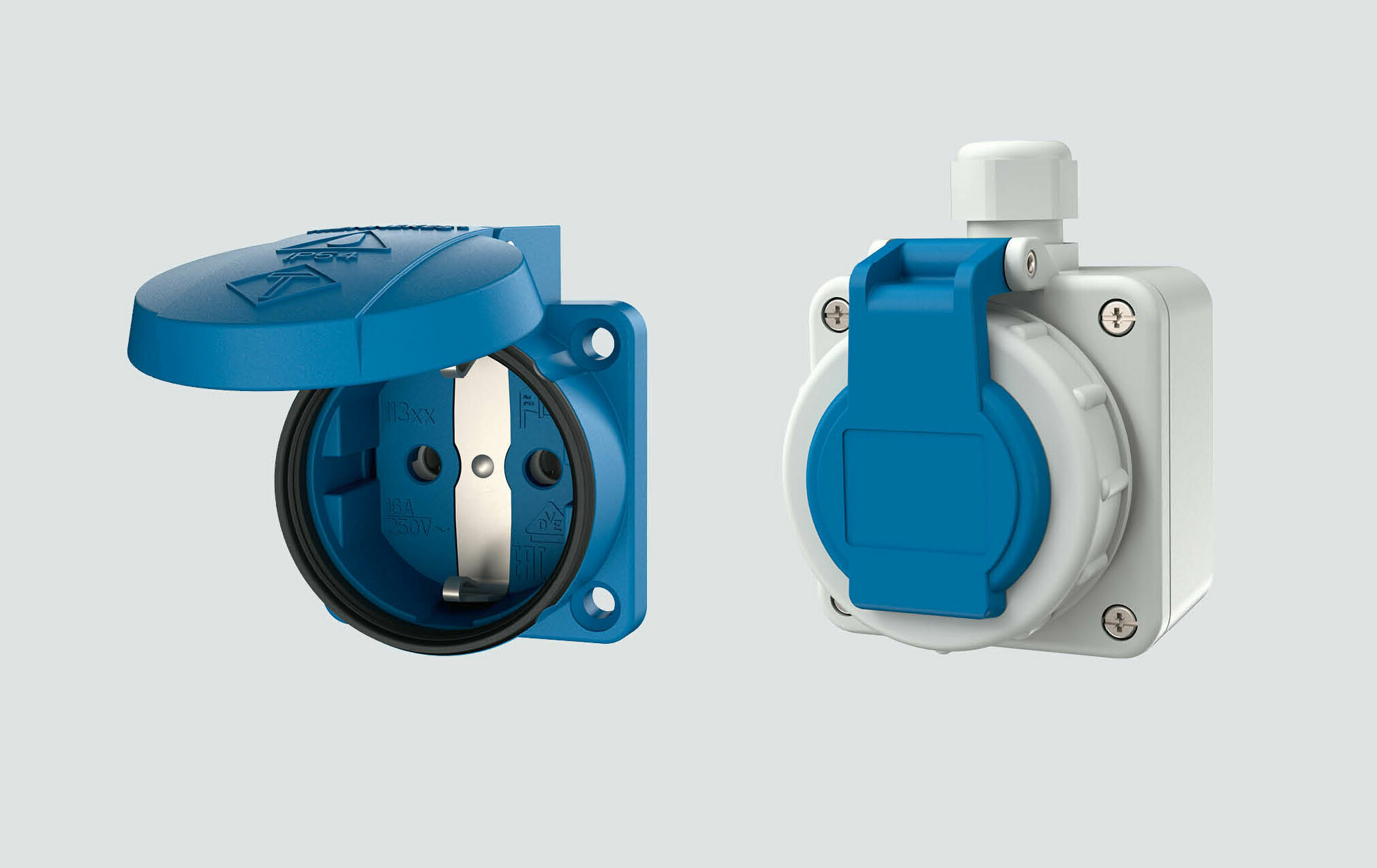

Panel mounted receptacles with hammer symbol and flange seal collar
Our SCHUKO® panel mount receptacles with the hammer symbol are also available with a flange seal collar made of thermoplastic elastomer (TPE) for portable devices. Thanks to two-component technology, the seal is permanently fixed and the receptacles are available with either screw or plug-in terminals. With a closed hinged cover, these receptacles achieve protection class IP54 in any orientation. They are finger-safe and back-of-hand safe according to IEC 60529 standards and are also available with a 75 x 75 mm flange size for cable ducts and flush-mounted boxes. Existing SCHUKO® receptacles can be easily upgraded to these versions.
Differences between solid and flexible conductors
In electrical installations, a distinction is made between solid (rigid) and flexible conductors. Our SCHUKO® product solutions can be used with both flexible and solid conductors, which must be pretreated differently depending on the application. Both variants have specific areas of application and properties:
Solid conductors – cross-section: 1.5 to 2.5 mm²
Solid conductors consist of a single wire and are generally used for permanently installed cables - e.g. in walls and ceilings. They are easier to work with and offer high mechanical stability. Due to their construction, they are less susceptible to breakage and ensure a reliable electrical connection. However, as they are hardly flexible, they are difficult to lay in tight installation spaces.
Flexible conductors - Flexible conductors 1.5 to 2.5 mm² cross-section
Flexible conductors consist of many thin individual wires that are combined into one strand. They are therefore more mobile and are used where flexibility is required - e.g. in connecting cables for appliances, in extension cables or areas with frequent movement. Their flexibility makes them ideal for use in confined spaces, but also requires special processing methods to ensure a secure connection.
