MENNEKES

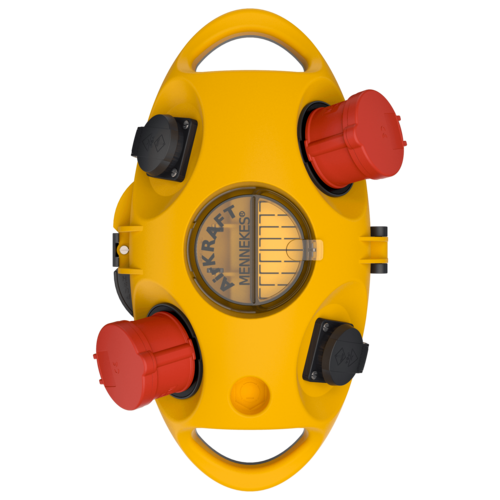

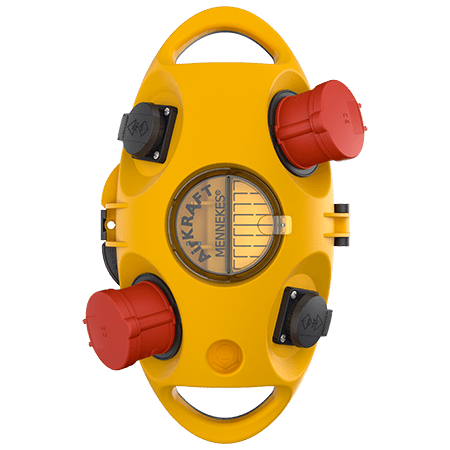

MENNEKES AirKRAFT 94552GE
MENNEKES AirKRAFT 94552GE images3d

AirKRAFT 94552GE

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • Part no.94552GE
  • EAN4015394195092
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AirKRAFT 94552GE

CEE 16 A, 5 p, 400 V 2
SCHUKO® 16 A, 230 V 2
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP44
Enclosure material Plastic
Weight 1740 g
Storage receptacle combination D

Directives

AirKRAFT 94552GE

Appropriate accessories

AirKRAFT 94552GE

MENNEKES Pneumatic connection 208621

Pneumatic connection

Part no. 208621

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Set of chains 106060

Set of chains

Part no. 106060

for fixing AirKRAFT to the ceiling

MENNEKES Pneumatic connection 41442

Pneumatic connection

Part no. 41442

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

MENNEKES Pneumatic connection 208620

Pneumatic connection

Part no. 208620

for 3KRAFT® and AirKRAFT®, for tube Ø 9 mm, part no. 208320for tube Ø 13 mm, part no. 208621, pneumatic connection duplex part no. 41442

Frequently asked questions about the product

Are there schematic diagrams for 3KRAFT and AirKRAFT products?

There are no schematic diagrams available for our 3KRAFT and AirKRAFT products. However, we can always provide you with detailed product information sheets with dimensional drawings. These can be found on the relevant product detail pages for Suspendable receptacle combinations on our website.

To the questions and answers
