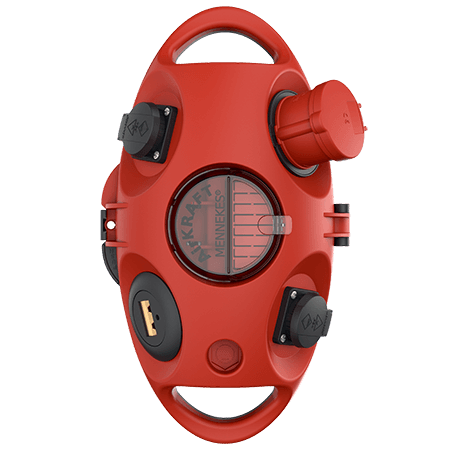

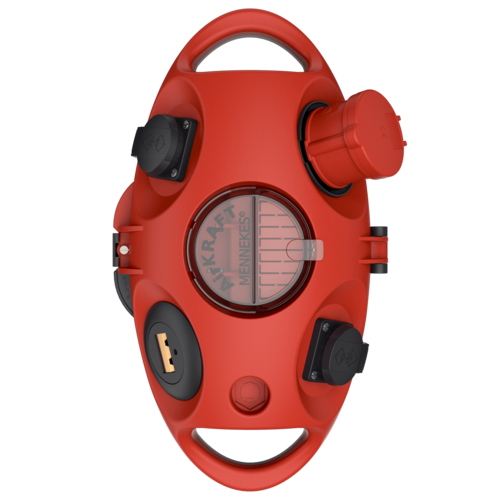

MENNEKES AirKRAFT 94555RO
MENNEKES AirKRAFT 94555RO images3d

AirKRAFT 94555RO

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • back box in black
  • hinged cover available in red (RO), yellow (GE) or silver (SI)
  • enclosure and insert made of AMAPLAST
  • Part no.94555RO
  • EAN4015394195191
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AirKRAFT 94555RO

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Data port sockets 1 RJ45 double data port cat.6, 8/8
Connection/feeder cable
  • for 1 cable up to 5 x 10 mm²
Protection type IP20
Enclosure material Plastic
Weight 1683 g
Storage receptacle combination B

Directives

AirKRAFT 94555RO

Frequently asked questions about the product

Are there schematic diagrams for 3KRAFT and AirKRAFT products?

There are no schematic diagrams available for our 3KRAFT and AirKRAFT products. However, we can always provide you with detailed product information sheets with dimensional drawings. These can be found on the relevant product detail pages for Suspendable receptacle combinations on our website.

To the questions and answers
