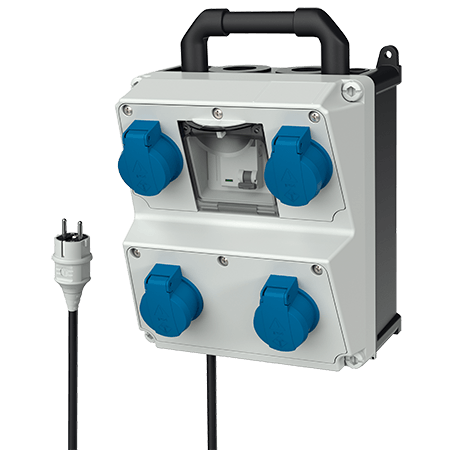

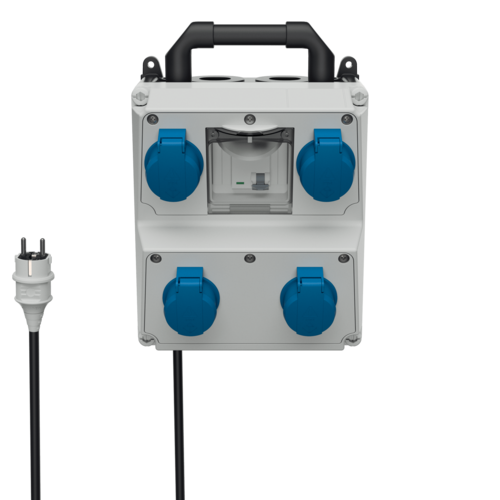

MENNEKES AMAXX receptacle combination 920033

Please accept marketing-cookies to watch this video.

AMAXX receptacle combination 920033

SCHUKO® 16 A, 230 V

pre-wired for installation
hinged to the side

enclosure and insert made of AMAPLAST
fusing behind a transparent cover

Part no.920033
EAN4015394222224
Std. Pack. 1

Technical specifications

AMAXX receptacle combination 920033

SCHUKO® 16 A, 230 V	4
Fusing	1 RCD 25 A, 2 p, 0.03 A
Pre-fuse max.	16 A
InA	16 A
RDF	1
Connection/feeder cable	2 m H07RN-F3G1.5 with plug SCHUKO® 16 A, 230 V
Protection type	IP44
Enclosure material	Plastic
Weight	2140 g
Height	260 mm
Width	225 mm
Certifications	EAC
Storage receptacle combination	D

Datasheets & Downloads

AMAXX receptacle combination 920033

Product infoAMAXX receptacle combination 920033 PDF, 162 KB

Mounting instructionsAMAXX receptacle combination 920033 PDF, 2 MB

Dimensional drawing portraitAMAXX receptacle combination 920033 PNG, 101 KB

Dimensional drawing landscape formatAMAXX receptacle combination 920033 PNG, 103 KB

Videos

AMAXX receptacle combination 920033

Please accept marketing-cookies to watch this video.

Directives

AMAXX receptacle combination 920033

REACh

RoHS

Appropriate accessories

AMAXX receptacle combination 920033

CombiTOWER

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

CombiTOWER

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

CombiTOWER

Part no. 15680

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, bright finish

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

Portable frame

Part no. 15696

yellow RAL 1003, suitable for AMAXX® receptacle combinations with the following sizes: 260 x 225 mm, 390 x 225 mm and 520 x 225 mm

Cable gland

Part no. 990607

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Mounting unit

Part no. 18444

hangable mounting unit, made from light metal, with holes for front and rearinstallation of receptacles and receptacle combinations, 2 enclosures 260 x 225 mm enclosures 390 x 225 mm, colour: white aluminium (RAL 9006)

AMAXX® screw set consisting

Part no. 990606

consisting of 4 screws 6 x 70 mm Pozidrive size 3, steel galvanized and 4 dowels 8 x 50 mm, for concrete, porous concrete, solid brick, perforated brick

Cable gland

Part no. 990608

black RAL 9005, M20 for cable from 6 - 13 mm part no. 990607, M32 for cable from 13 - 21 mm part no. 990608, M40 for cable from 14 - 28 mm part no. 990609

Weather shield

Part no. 15682

made from stainless steel (material 1.4301), with side blinds, cover can be removed from the back, for wall mounting or on a column 15530, dimensions (H x W x D): 496.5 x 254 x 250 mm

AMAXX receptacle combination

Part no. 920060

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.

How can I get spare parts for AMAXX?

Please let us know the part number of the AMAXX receptacle combination and the exact spare part that you need. We will make every effort to accommodate your request as quickly as possible and to send you the desired spare parts.

The person to contact can be found here.

Could I also get AMAXX receptacle combinations with a terminal block?

A single feeder is used with these receptacle combinations as standard, for example, to a residual current circuit breaker. We would be happy to install a terminal block for larger supply lines or a conductor line on request and as specified by you, for example, with the dimensions: 2 x 5 x 25 square mm.

Where do I find the approval number?

The approval number of our products is located inside the enclosure. For products of the AMAXX family, there is also an inspection tag in the window.

To the questions and answers
