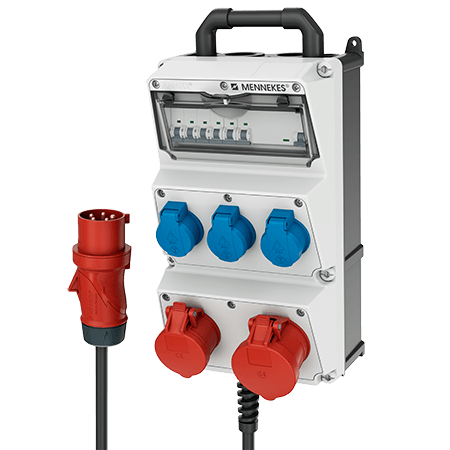

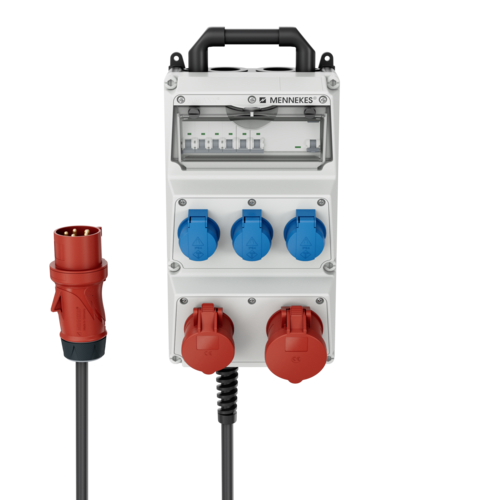

AMAXX receptacle combination 930025
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- pre-wired for installation
- hinged to the side
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
AMAXX receptacle combination 930025
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| CEE 16 A, 5 p, 400 V | 1 |
| SCHUKO® 16 A, 230 V | 3 |
| Fusing |
|
| Pre-fuse max. | 32 A |
| InA | 32 A |
| RDF | 1 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Plastic |
| Weight | 6860 g |
| Height | 390 mm |
| Width | 225 mm |
| Certifications | EAC |
| Storage receptacle combination | A |
Videos
AMAXX receptacle combination 930025
Appropriate accessories
AMAXX receptacle combination 930025
Frequently asked questions about the product
Can I order partially wired receptacle combinations from MENNNEKES?
We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .
Can I make changes to the receptacle combination or extend it?
Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.
Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?
Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
How can I get spare parts for AMAXX?
Please let us know the part number of the AMAXX receptacle combination and the exact spare part that you need. We will make every effort to accommodate your request as quickly as possible and to send you the desired spare parts.
The person to contact can be found here.
Could I also get AMAXX receptacle combinations with a terminal block?
A single feeder is used with these receptacle combinations as standard, for example, to a residual current circuit breaker. We would be happy to install a terminal block for larger supply lines or a conductor line on request and as specified by you, for example, with the dimensions: 2 x 5 x 25 square mm.
Where do I find the approval number?
The approval number of our products is located inside the enclosure. For products of the AMAXX family, there is also an inspection tag in the window.
