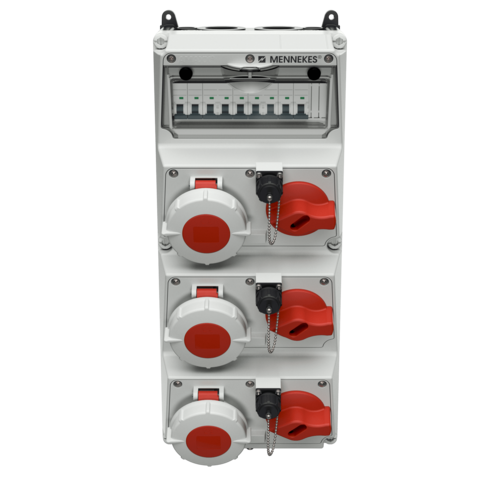

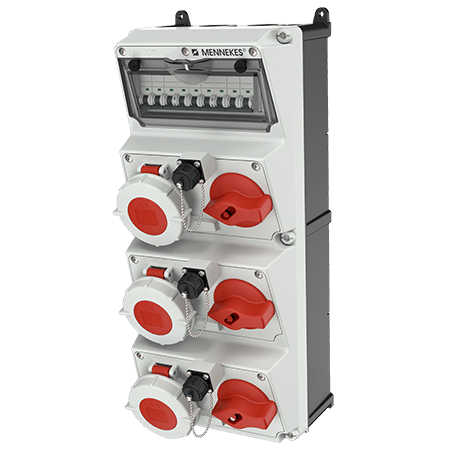

MENNEKES AMAXX receptacle combination 940019

AMAXX receptacle combination 940019

With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows...Read more
CEE 32 A, 4 p, 400 V DUO
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • DUO receptacles switched and interlocked, with highly heat resistant contact carrier and nickel plated contacts
  • Part no.940019
  • EAN4015394222347
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX receptacle combination 940019

CEE 32 A, 4 p, 400 V DUO 3
Fusing
  • 3 MCB´s 32 A, 3 p, C
  • 3 monitoring sockets MS3102E 14S2S
  • 1 earth bolt M 10, V2A
Pre-fuse max. 100 A
InA 67 A
RDF 0.7
Connection/feeder cable
  • for 2 cables up to 5 x 25 mm²
  • for 3 monitoring sockets up to 4 x 4 mm²
Protection type IP67
Enclosure material Plastic
Weight 7460 g
Height 520 mm
Width 225 mm
Certifications EAC
Storage receptacle combination B

Videos

AMAXX receptacle combination 940019

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX receptacle combination 940019

Appropriate accessories

AMAXX receptacle combination 940019

MENNEKES CombiTOWER 15679

CombiTOWER

Part no. 15679

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, painted signal yellow (RAL 1003)

MENNEKES CombiTOWER 15678

CombiTOWER

Part no. 15678

made from stainless steel (material 1.4301), material 1.4571 on request, with removable cover, dimensions (H x W x D): 1043 x 254.5 x 250 mm, bright finish

MENNEKES CombiTOWER 15681

CombiTOWER

Part no. 15681

made from stainless steel (material 1.4301), material 1.4571 on request, with lockable door, with removable cover, dimensions (H x W x D): 1043 x 254 x 415 mm, painted signal yellow (RAL 1003)

Frequently asked questions about the product

Can I order partially wired receptacle combinations from MENNNEKES?

We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .

Can I make changes to the receptacle combination or extend it?

Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.

Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?

Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.

How can I get spare parts for AMAXX?

Please let us know the part number of the AMAXX receptacle combination and the exact spare part that you need. We will make every effort to accommodate your request as quickly as possible and to send you the desired spare parts.

The person to contact can be found here.

Could I also get AMAXX receptacle combinations with a terminal block?

A single feeder is used with these receptacle combinations as standard, for example, to a residual current circuit breaker. We would be happy to install a terminal block for larger supply lines or a conductor line on request and as specified by you, for example, with the dimensions: 2 x 5 x 25 square mm.

Where do I find the approval number?

The approval number of our products is located inside the enclosure. For products of the AMAXX family, there is also an inspection tag in the window.
