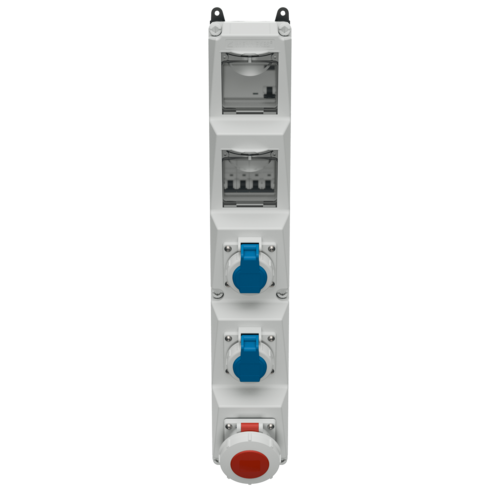

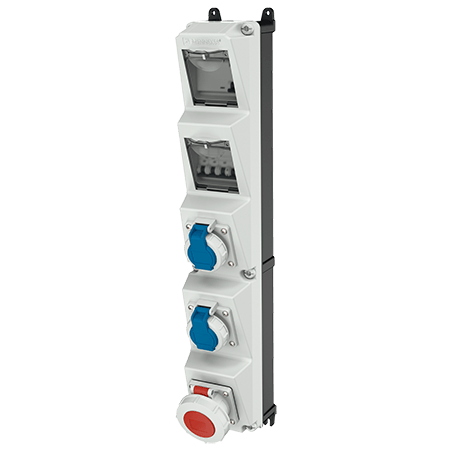

AMAXX s receptacle combination 960030
With AMAXX you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one enclosure with external mounting that allows installation by one person. The hinged enclosure cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- pre-wired for installation
- enclosure and insert made of AMAPLAST
- fusing behind a transparent cover
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
AMAXX s receptacle combination 960030
| CEE 16 A, 5 p, 400 V | 1 |
|---|---|
| SCHUKO® 16 A, 230 V | 2 |
| Fusing |
|
| Pre-fuse max. | 63 A |
| InA | 32 A |
| RDF | 1 |
| Connection/feeder cable |
|
| Protection type | IP67 |
| Enclosure material | Plastic |
| Weight | 3420 g |
| Height | 650 mm |
| Width | 112.5 mm |
| Certifications | EAC |
| Storage receptacle combination | B |
Videos
AMAXX s receptacle combination 960030
Appropriate accessories
AMAXX s receptacle combination 960030
Frequently asked questions about the product
Can I order partially wired receptacle combinations from MENNNEKES?
We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .
Could I also get AMAXX receptacle combinations with a terminal block?
A single feeder is used with these receptacle combinations as standard, for example, to a residual current circuit breaker. We would be happy to install a terminal block for larger supply lines or a conductor line on request and as specified by you, for example, with the dimensions: 2 x 5 x 25 square mm.
How can I get spare parts for AMAXX?
Please let us know the part number of the AMAXX receptacle combination and the exact spare part that you need. We will make every effort to accommodate your request as quickly as possible and to send you the desired spare parts.
The person to contact can be found here.
What kind of cable glands are advisable for protection type IP67 enclosures?
Rising temperatures can result in the formation of condensation in receptacle combinations. Special membrane screw connections for protection type IP 67 enclosures ensure an exchange of air and prevent evaporation. In practical application, feeding from below has proven to be effective.
Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?
Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
Can I make changes to the receptacle combination or extend it?
Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.
Where do I find the approval number?
The approval number of our products is located inside the enclosure. For products of the AMAXX family, there is also an inspection tag in the window.
