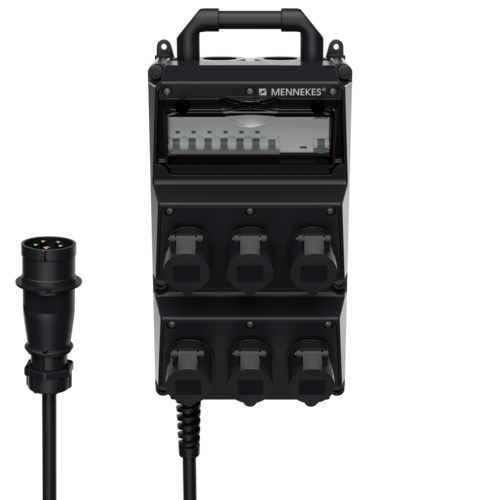

MENNEKES AMAXX® receptacle combination 931553
MENNEKES AMAXX® receptacle combination 931553 images3d

Please accept marketing-cookies to watch this video.

Video varieties

AMAXX® receptacle combination 931553

CEE 16 A, 3 p, 230 V
  • pre-wired for installation
  • hinged to the side
  • enclosure and insert made of AMAPLAST
  • fusing behind a transparent cover
  • Part no.931553
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

AMAXX® receptacle combination 931553

CEE 16 A, 3 p, 230 V 6
Fusing
  • 1 RCD 40 A, 4 p, 0.03 A
  • 6 MCB´s 16 A, 1 p+N, C
Pre-fuse max. 32 A
InA 31 A
RDF 0.95
Connection/feeder cable
  • 1 m H07RN-F5G4 with CEE-plug 32 A, 5 p, 400 V
Protection type IP44
Enclosure material Plastic
Weight 3160 g
Height 390 mm
Width 225 mm

Videos

AMAXX® receptacle combination 931553

Please accept marketing-cookies to watch this video.

Video varieties

Directives

AMAXX® receptacle combination 931553
