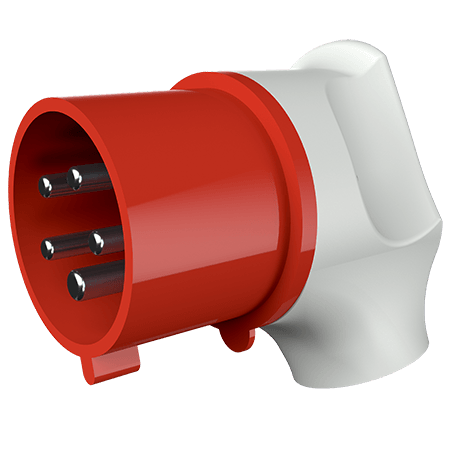

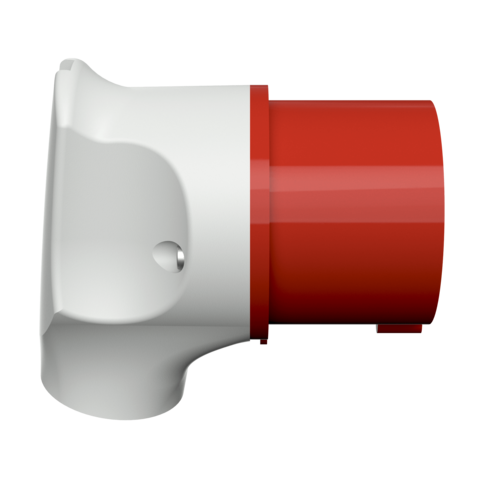

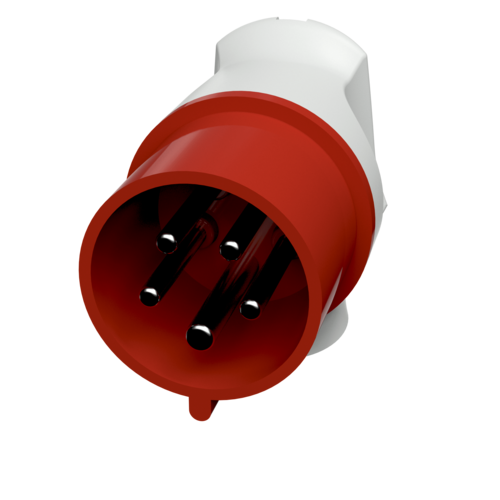

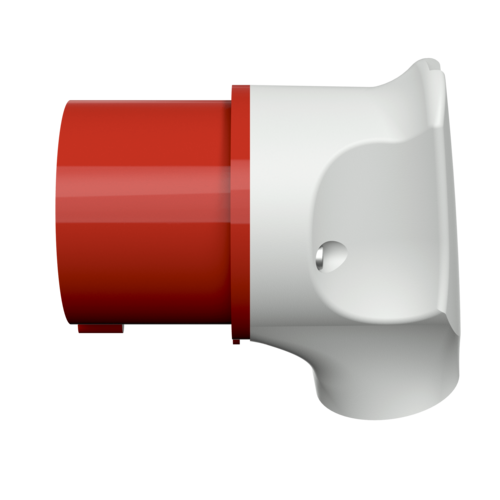

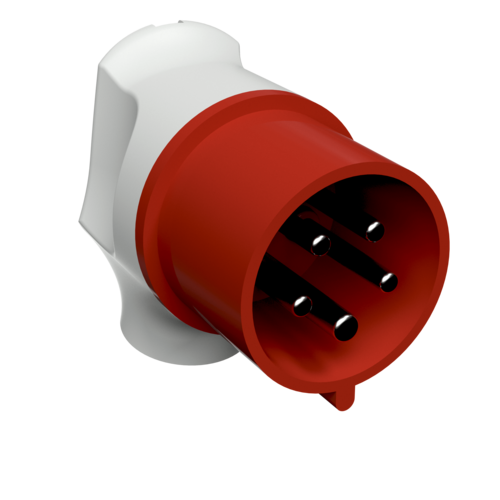

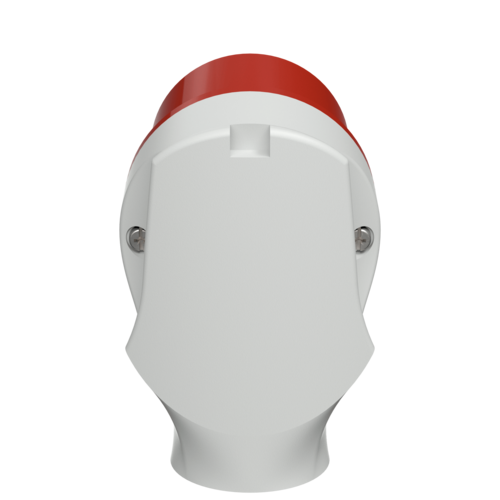

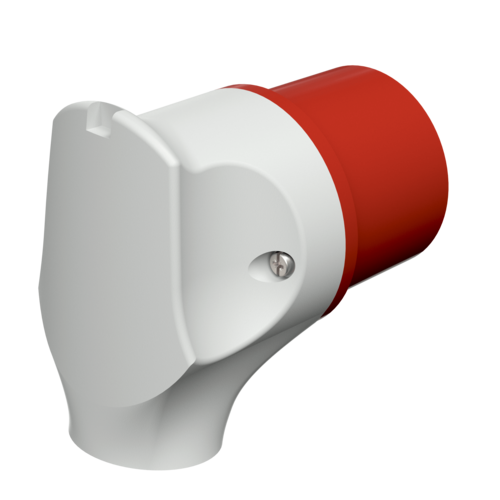

MENNEKES Angled plug 3266
MENNEKES Angled plug 3266 images3d

Angled plug 3266

Ampere 32 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • with grommet
  • especially suited for use with receptacles of the Cepex range
  • Part no.3266
  • EAN4015394018469
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Angled plug 3266

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 249 g
Certifications EAC

Directives

Angled plug 3266

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
