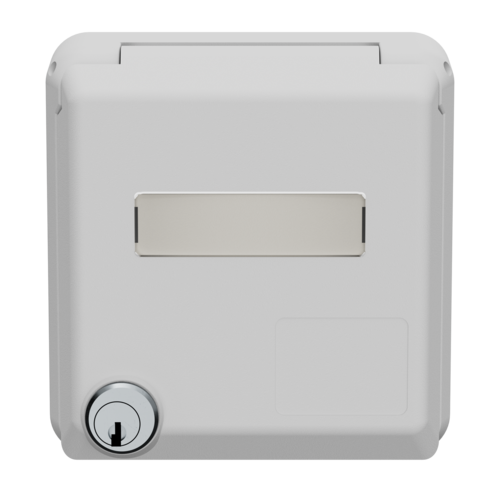

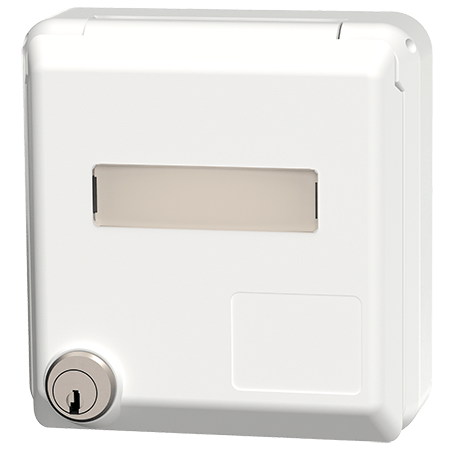

Cepex enclosure 4304

alpine white
as panel mounted receptacle
for installation of RJ45 data port receptacles
for TKM type KDMF, also suited for data modules of Telegärtner (AMJ 45 Up/O, Cat.6a) and Nexans (LANmark-6 Snap-in Connector with jumper ring Modular Outlet 50)

with labelling field
2 keys
with identical lock: part no + index G

Part no.4304
EAN4015394211976
Std. Pack. 5

Technical specifications

Cepex enclosure 4304

Datasheets & Downloads

Cepex enclosure 4304

Product infoCepex enclosure 4304 PDF, 216 KB

Dimensional drawing portraitCepex enclosure 4304 PNG, 53 KB

Dimensional drawing landscape formatCepex enclosure 4304 PNG, 116 KB

Directives

Cepex enclosure 4304

REACh

RoHS

Appropriate accessories

Cepex enclosure 4304

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Data module

Part no. 41452

TKM, Type: Data port insert 2 x RJ45, cat.6, type KDMF, suitable for Cepex receptacles, part no. 4300 and versions

Frequently asked questions about the product

Are there spare keys for lockable Cepex receptacles?

We are offering a spare lock and a key for our Cepex receptacles. It is not possible to provide a single key.

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
