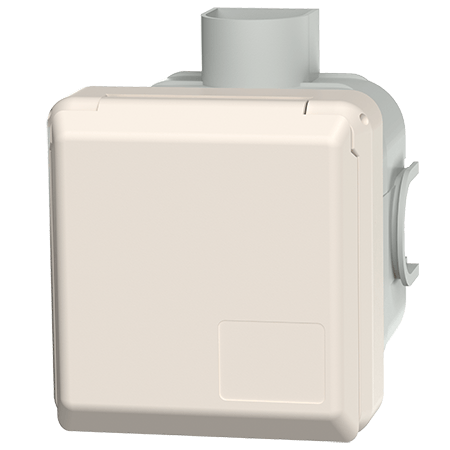

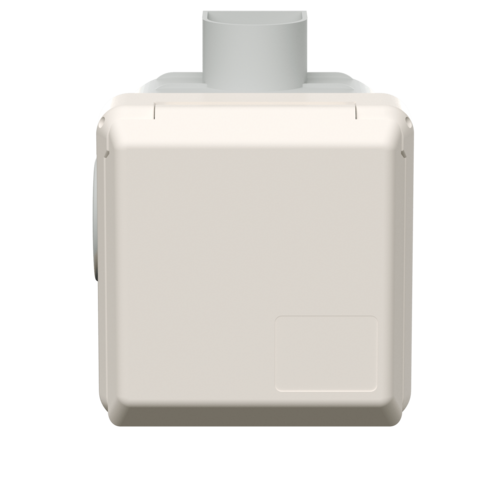

Cepex flush mounted receptacle 4125

Name: Cepex flush mounted receptacle
Brand: MENNEKES
SKU: 4125

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
with flush mounted installation box

meeting DIN 18032 standards for ball rebound

Part no.4125
EAN4015394021704
Std. Pack. 5

Technical specifications

Cepex flush mounted receptacle 4125

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	278 g
Certifications	VDE

Datasheets & Downloads

Cepex flush mounted receptacle 4125

Product infoCepex flush mounted receptacle 4125 PDF, 174 KB

Manufacturer‘s declarationCepex flush mounted receptacle 4125 PDF, 50 KB

CAD data STPCepex flush mounted receptacle 4125 ZIP, 228 KB

CAD data 3D DWGCepex flush mounted receptacle 4125 ZIP, 440 KB

Dimensional drawing portraitCepex flush mounted receptacle 4125 PNG, 89 KB

Dimensional drawing landscape formatCepex flush mounted receptacle 4125 PNG, 90 KB

Directives

Cepex flush mounted receptacle 4125

REACh

RoHS

Appropriate accessories

Cepex flush mounted receptacle 4125

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the receptacle is installed

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
