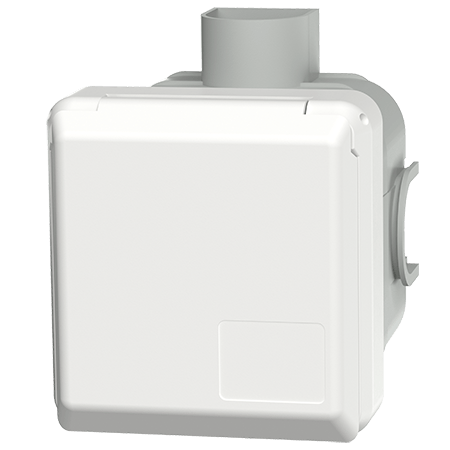

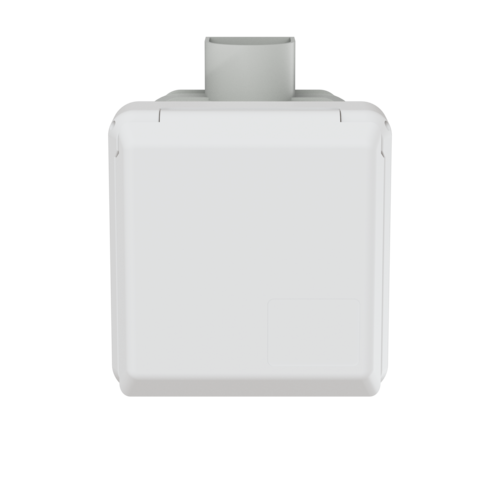

Show all Cepex Design / Show all Cepex flush mounted receptacle, alpine white

Cepex flush mounted receptacle, alpine white 4244

Name: Cepex flush mounted receptacle, alpine white
Brand: MENNEKES
SKU: 4244

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
with flush mounted installation box

meeting DIN 18032 standards for ball rebound

Part no.4244
EAN4015394022923
Std. Pack. 5

Technical specifications

Cepex flush mounted receptacle, alpine white 4244

Ampere	16 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	280 g
Certifications	VDE

Datasheets & Downloads

Cepex flush mounted receptacle, alpine white 4244

Product infoCepex flush mounted receptacle, alpine white 4244 PDF, 177 KB

Manufacturer‘s declarationCepex flush mounted receptacle, alpine white 4244 PDF, 41 KB

Dimensional drawing portraitCepex flush mounted receptacle, alpine white 4244 PNG, 89 KB

Dimensional drawing landscape formatCepex flush mounted receptacle, alpine white 4244 PNG, 90 KB

Directives

Cepex flush mounted receptacle, alpine white 4244

REACh

RoHS

Appropriate accessories

Cepex flush mounted receptacle, alpine white 4244

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Protection plate

Part no. 41414

for flush mounted installation box to protect fixing holes and the box from plaster and dirt until the receptacle is installed

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles
