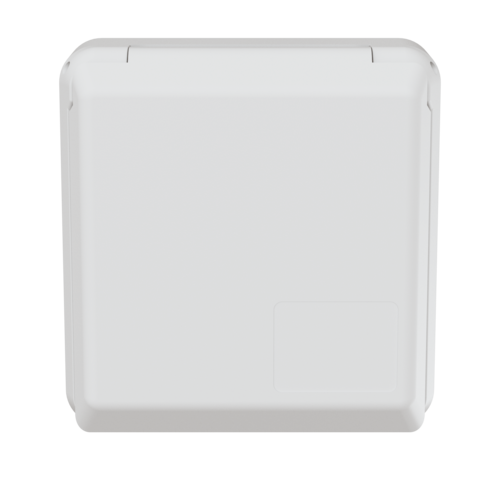

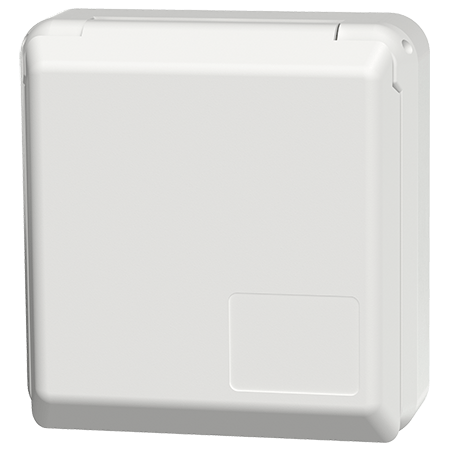

Cepex grounding-type panel mounted receptacle 4909

Name: Cepex grounding-type panel mounted receptacle
Brand: MENNEKES
SKU: 4909

Ampere 16 A

Poles

Voltage

french-belgian standard
screw terminals

for installation in cable ducts and collumns
meeting DIN 18032 standards for ball rebound

Part no.4909
EAN4015394231196
Std. Pack. 5

Technical specifications

Cepex grounding-type panel mounted receptacle 4909

Ampere	16 A
Poles	2 p+E
Voltage	230 V
Hertz	50-60 Hz
Protection type	IP44
Shutter	Yes
Weight	256 g
Certifications	EAC

Datasheets & Downloads

Cepex grounding-type panel mounted receptacle 4909

Product infoCepex grounding-type panel mounted receptacle 4909 PDF, 169 KB

Dimensional drawing portraitCepex grounding-type panel mounted receptacle 4909 PNG, 55 KB

Dimensional drawing landscape formatCepex grounding-type panel mounted receptacle 4909 PNG, 55 KB

Directives

Cepex grounding-type panel mounted receptacle 4909

REACh

RoHS

Appropriate accessories

Cepex grounding-type panel mounted receptacle 4909

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
