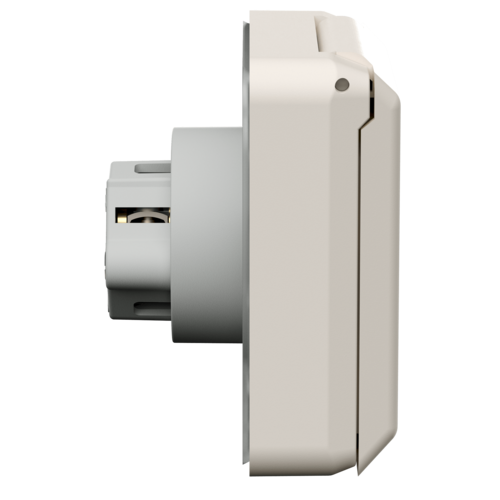

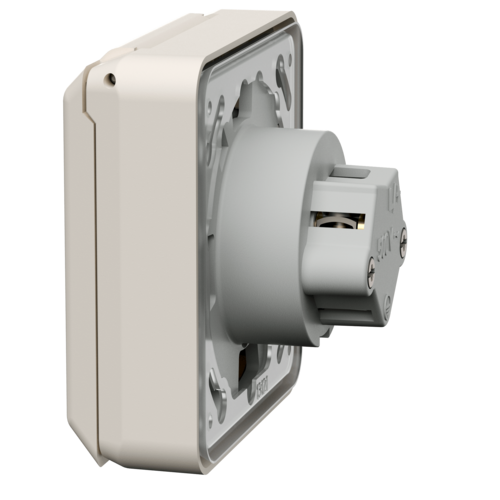

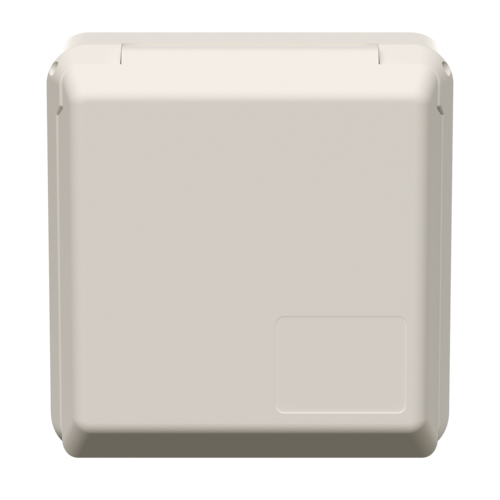

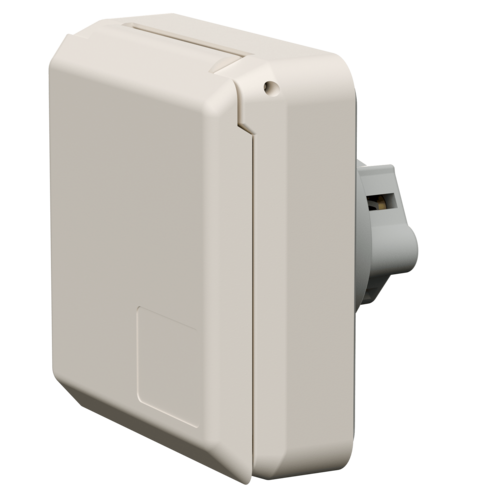

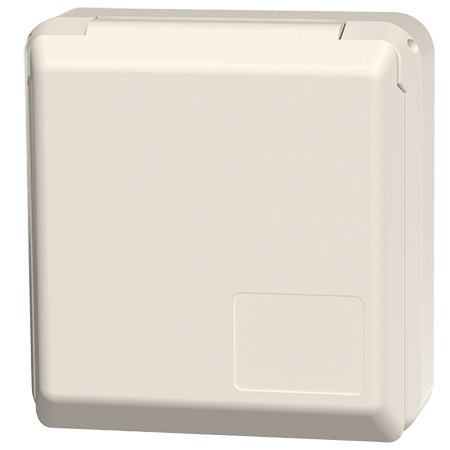

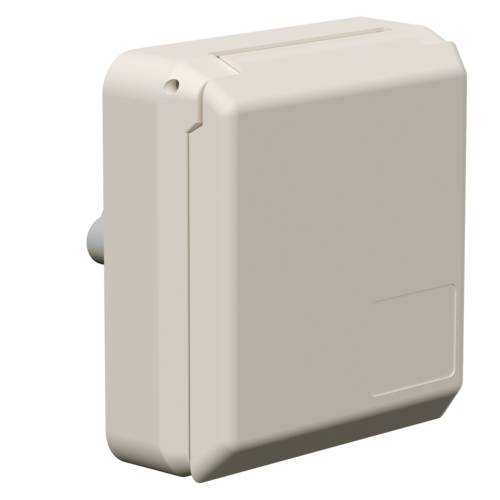

Cepex panel mounted receptacle 4112

Name: Cepex panel mounted receptacle
Brand: MENNEKES
SKU: 4112

Ampere 16 A 32 A

Poles

Voltage

Clock position

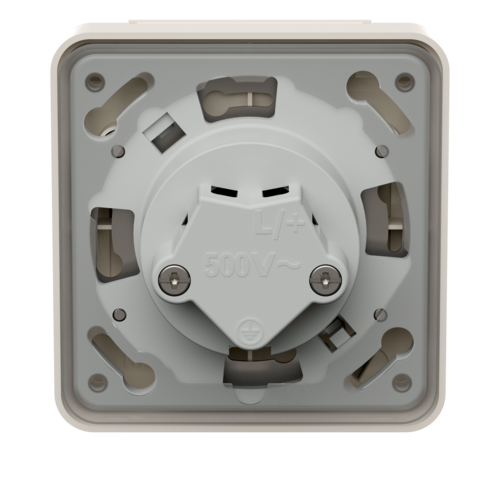

screw terminals
also suitable for installation in cable ducts and columns

meeting DIN 18032 standards for ball rebound

Part no.4112
EAN4015394021506
Std. Pack. 5

Technical specifications

Cepex panel mounted receptacle 4112

Ampere	16 A
Poles	3 p
Voltage	230 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	181 g
Certifications	VDE

Datasheets & Downloads

Cepex panel mounted receptacle 4112

Product infoCepex panel mounted receptacle 4112 PDF, 182 KB

Manufacturer‘s declarationCepex panel mounted receptacle 4112 PDF, 54 KB

CAD data STPCepex panel mounted receptacle 4112 ZIP, 271 KB

CAD data 3D DWGCepex panel mounted receptacle 4112 ZIP, 579 KB

Dimensional drawing portraitCepex panel mounted receptacle 4112 PNG, 73 KB

Dimensional drawing landscape formatCepex panel mounted receptacle 4112 PNG, 73 KB

Directives

Cepex panel mounted receptacle 4112

REACh

RoHS

Appropriate accessories

Cepex panel mounted receptacle 4112

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)
