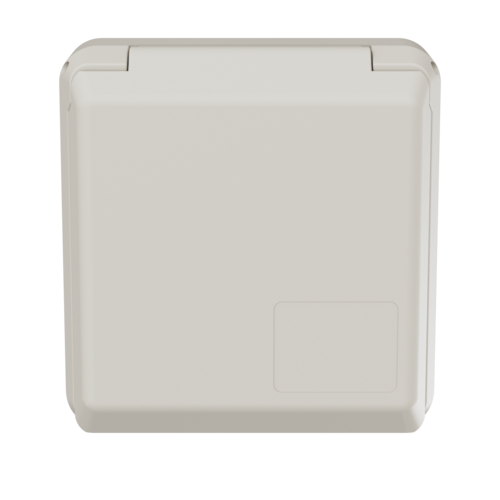

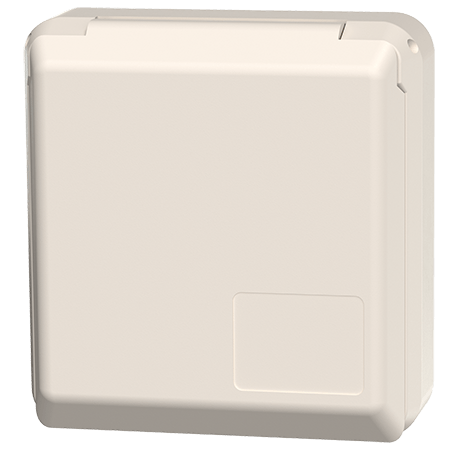

Cepex panel mounted receptacle 4119

Name: Cepex panel mounted receptacle
Brand: MENNEKES
SKU: 4119

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
also suitable for installation in cable ducts and columns

meeting DIN 18032 standards for ball rebound

Part no.4119
EAN4015394021629
Std. Pack. 5

Technical specifications

Cepex panel mounted receptacle 4119

Ampere	32 A
Poles	4 p
Voltage	500 V
Clock position	7 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	234 g
Certifications	EAC

Datasheets & Downloads

Cepex panel mounted receptacle 4119

Product infoCepex panel mounted receptacle 4119 PDF, 182 KB

Dimensional drawing portraitCepex panel mounted receptacle 4119 PNG, 73 KB

Dimensional drawing landscape formatCepex panel mounted receptacle 4119 PNG, 73 KB

Directives

Cepex panel mounted receptacle 4119

REACh

RoHS

Appropriate accessories

Cepex panel mounted receptacle 4119

Spacer frame

Part no. 4239

to compensate for unequal heights, matching all Cepex surface mounted receptacles (Data, SCHUKO®, 16 A and 32 A)

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Cepex masking frame

Part no. 41408

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Cepex masking frame

Part no. 41424

double, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles for horizontal installation of two receptacles

Cepex masking frames

Part no. 41406

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Cepex masking frames

Part no. 41423

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
