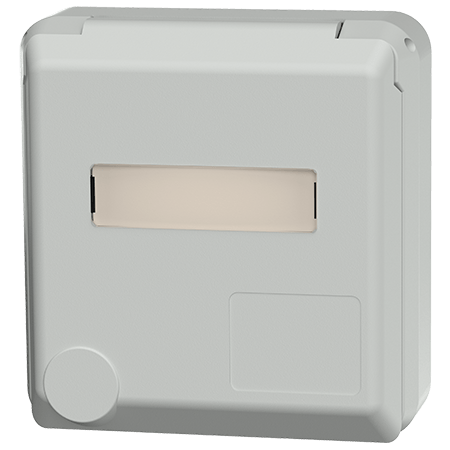

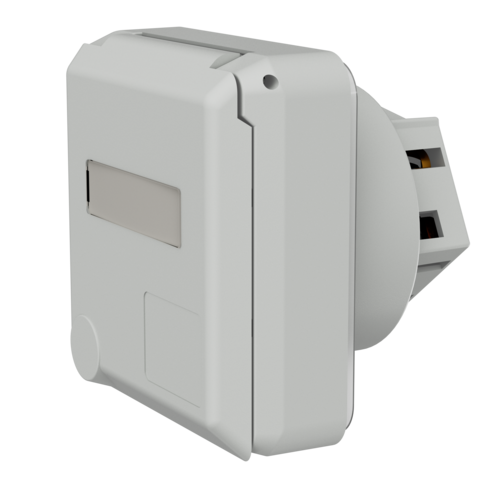

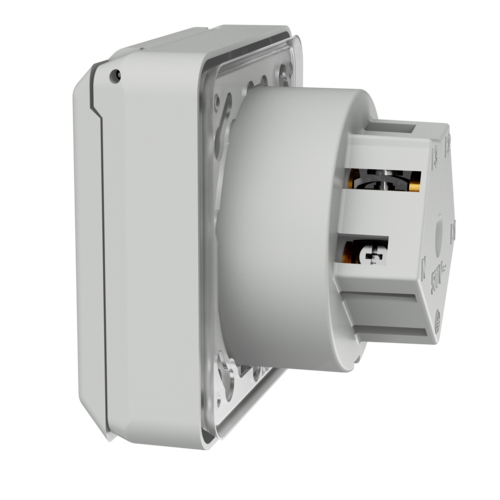

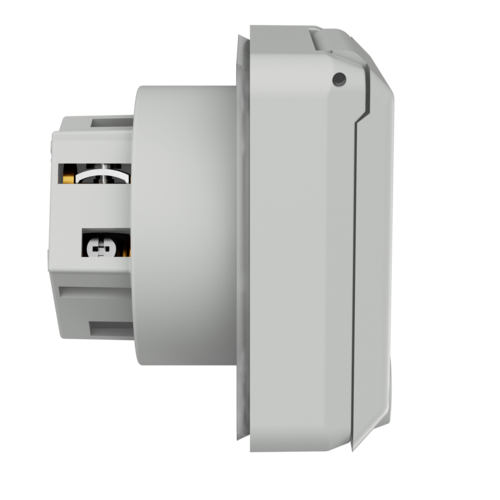

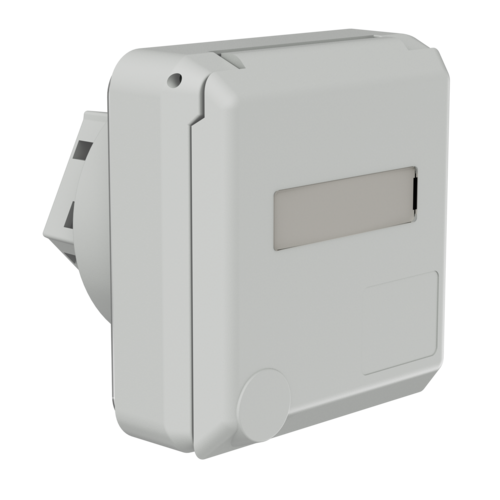

Cepex panel mounted receptacle 4217

Name: Cepex panel mounted receptacle
Brand: MENNEKES
SKU: 4217

Ampere 16 A 32 A

Poles

Voltage

Clock position

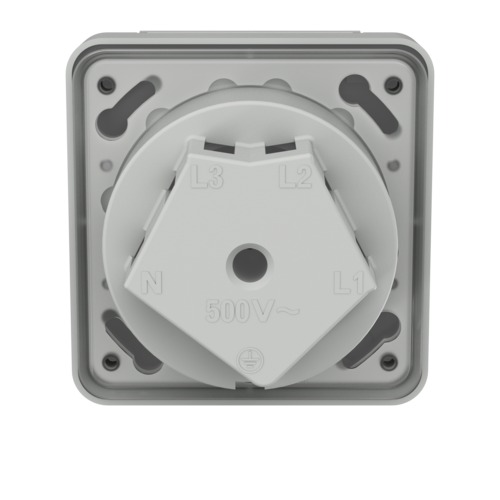

screw terminals

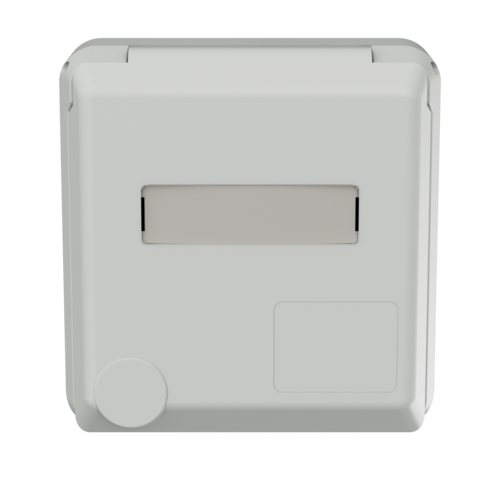

with labelling field

suitable for installation in cable ducts and columns

Part no.4217
EAN4015394022688
Std. Pack. 5

Technical specifications

Cepex panel mounted receptacle 4217

Ampere	32 A
Poles	5 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Protection type	IP44
Shutter	No
Weight	258 g
Certifications	EAC

Datasheets & Downloads

Cepex panel mounted receptacle 4217

Product infoCepex panel mounted receptacle 4217 PDF, 198 KB

Dimensional drawing portraitCepex panel mounted receptacle 4217 PNG, 77 KB

Dimensional drawing landscape formatCepex panel mounted receptacle 4217 PNG, 77 KB

Directives

Cepex panel mounted receptacle 4217

REACh

RoHS

Appropriate accessories

Cepex panel mounted receptacle 4217

Flush mounted installation box

Part no. 41404

for Cepex CEE receptacles 16 A and 32 A and Cepex receptacles SCHUKO®, can be combined with all Cepex panel mounted receptacles

Cepex masking frames

Part no. 41407

single, matching all Cepex flush mounted and panel mounted 16 A and 32 A receptacles, for the installation of single appliances and for vertical combination of any number of receptacles

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
