Show all Cepex Design / Show all Cepex wall mounted receptacle

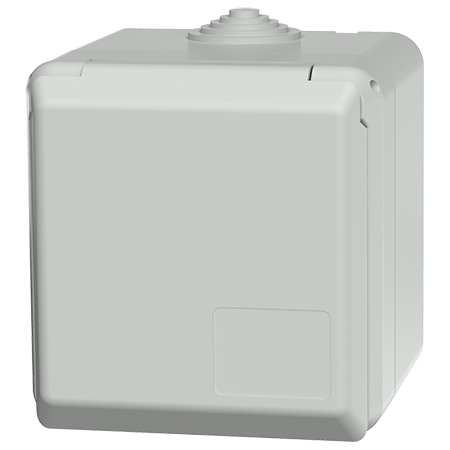

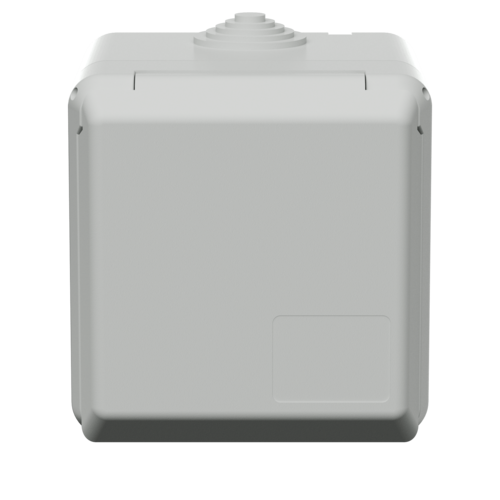

MENNEKES Cepex wall mounted receptacle 4103
MENNEKES Cepex wall mounted receptacle 4103 images3d

Cepex wall mounted receptacle 4103

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • meeting DIN 18032 standards for ball rebound
  • Part no.4103
  • EAN4015394021407
  • Std. Pack. 5

Technical specifications

Cepex wall mounted receptacle 4103

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 303 g
Certifications EAC

Datasheets & Downloads

Cepex wall mounted receptacle 4103

Product infoCepex wall mounted receptacle 4103 PDF, 204 KB
Dimensional drawing portraitCepex wall mounted receptacle 4103 PNG, 97 KB
Dimensional drawing landscape formatCepex wall mounted receptacle 4103 PNG, 98 KB

Directives

Cepex wall mounted receptacle 4103

REACh
RoHS

Appropriate accessories

Cepex wall mounted receptacle 4103

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
