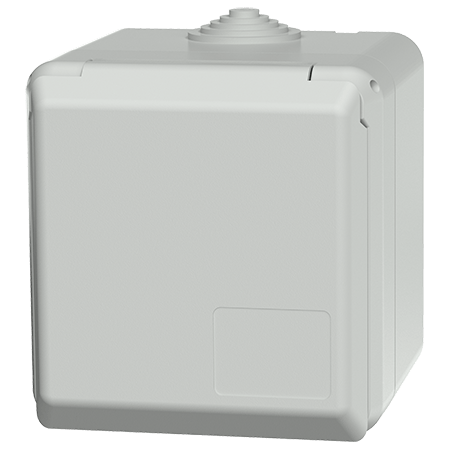

MENNEKES Cepex wall mounted receptacle 4105
MENNEKES Cepex wall mounted receptacle 4105 images3d

Cepex wall mounted receptacle 4105

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • meeting DIN 18032 standards for ball rebound
  • Part no.4105
  • EAN4015394021421
  • Std. Pack. 5

Technical specifications

Cepex wall mounted receptacle 4105

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 307 g
Certifications VDE

Datasheets & Downloads

Cepex wall mounted receptacle 4105

Product infoCepex wall mounted receptacle 4105 PDF, 205 KB
Manufacturer‘s declarationCepex wall mounted receptacle 4105 PDF, 41 KB
CAD data STPCepex wall mounted receptacle 4105 ZIP, 269 KB
CAD data 3D DWGCepex wall mounted receptacle 4105 ZIP, 431 KB
Dimensional drawing portraitCepex wall mounted receptacle 4105 PNG, 97 KB
Dimensional drawing landscape formatCepex wall mounted receptacle 4105 PNG, 98 KB

Directives

Cepex wall mounted receptacle 4105

REACh
RoHS

Appropriate accessories

Cepex wall mounted receptacle 4105

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
