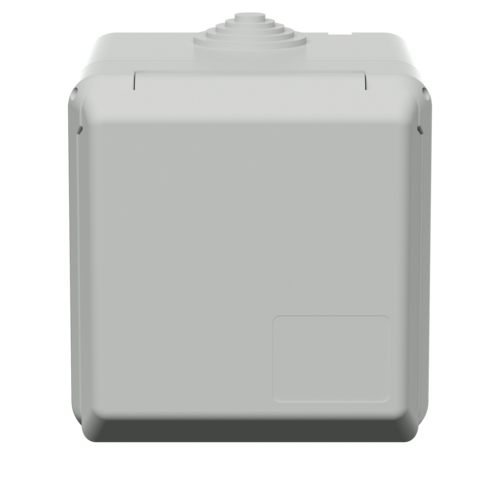

MENNEKES Cepex wall mounted receptacle 4110
MENNEKES Cepex wall mounted receptacle 4110 images3d

Cepex wall mounted receptacle 4110

Poles
Voltage
Clock position
  • screw terminals
  • meeting DIN 18032 standards for ball rebound
  • Part no.4110
  • EAN4015394021476
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Cepex wall mounted receptacle 4110

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Protection type IP44
Shutter No
Weight 405 g
Certifications VDE

Directives

Cepex wall mounted receptacle 4110

Appropriate accessories

Cepex wall mounted receptacle 4110

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

Frequently asked questions about the product

What does Cepex stand for?

Cepex receptacles are used as a modular system. Regardless of whether SCHUKO®, CEE or data technology is involved: everything is accommodated by the uniform design of our Cepex receptacles across all applications.
