MENNEKES Connector AM-TOP 21366
MENNEKES Connector AM-TOP 21366 images3d

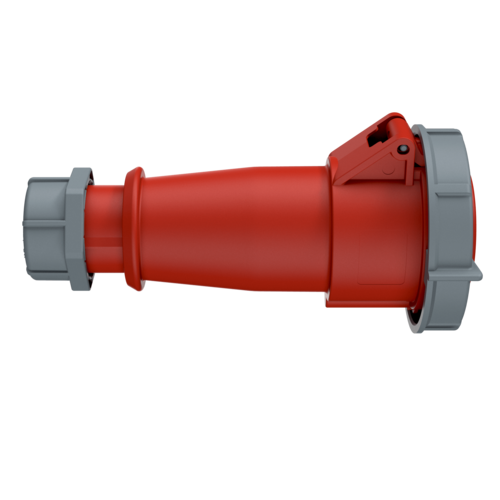

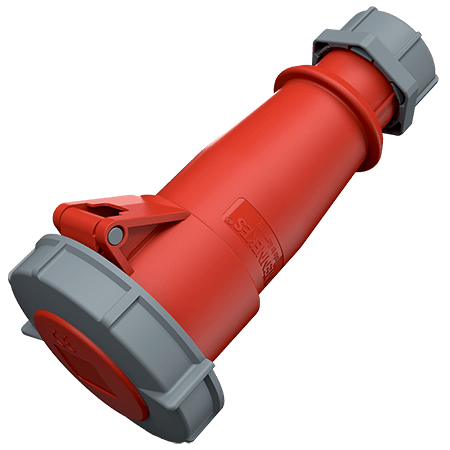

Connector AM-TOP 21366

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21366
  • EAN4015394040446
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 21366

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 442 g
Certifications VDE

Directives

Connector AM-TOP 21366

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here

To the questions and answers
