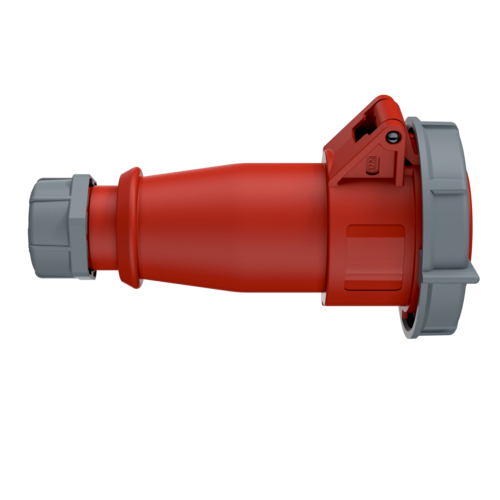

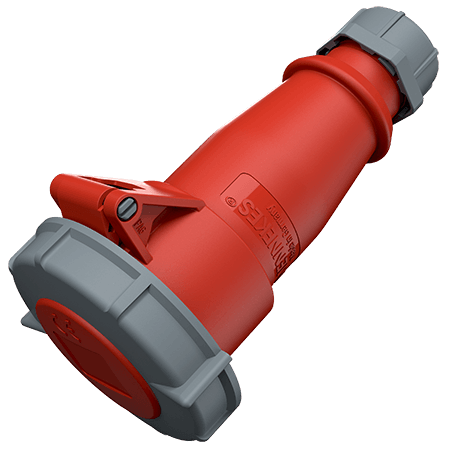

MENNEKES Connector AM-TOP 3916
MENNEKES Connector AM-TOP 3916 images3d

Connector AM-TOP 3916

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.3916
  • EAN4015394099864
  • Std. Pack. 10

Technical specifications

Connector AM-TOP 3916

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 269 g
Certifications EAC

Datasheets & Downloads

Connector AM-TOP 3916

Product infoConnector AM-TOP 3916 PDF, 131 KB
Manufacturer‘s declarationConnector AM-TOP 3916 PDF, 53 KB
Mounting instructionsConnector AM-TOP 3916 PDF, 2 MB
Dimensional drawing portraitConnector AM-TOP 3916 PNG, 71 KB
Dimensional drawing landscape formatConnector AM-TOP 3916 PNG, 71 KB

Directives

Connector AM-TOP 3916

REACh
RoHS
