Show all Connectors / Show all Connector AM-TOP

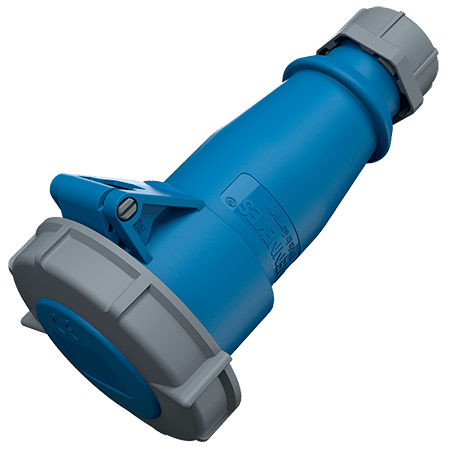

MENNEKES Connector AM-TOP 543

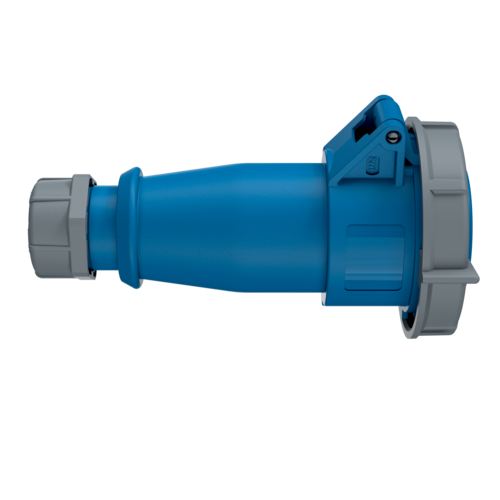

MENNEKES Connector AM-TOP 543 images3d

Connector AM-TOP 543

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.543
  • EAN4015394003984
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector AM-TOP 543

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 222 g
Certifications EAC

Datasheets & Downloads

Connector AM-TOP 543

Product infoConnector AM-TOP 543 PDF, 133 KB
Mounting instructionsConnector AM-TOP 543 PDF, 2 MB
Dimensional drawing portraitConnector AM-TOP 543 PNG, 71 KB
Dimensional drawing landscape formatConnector AM-TOP 543 PNG, 71 KB

Directives

Connector AM-TOP 543

REACh
RoHS
