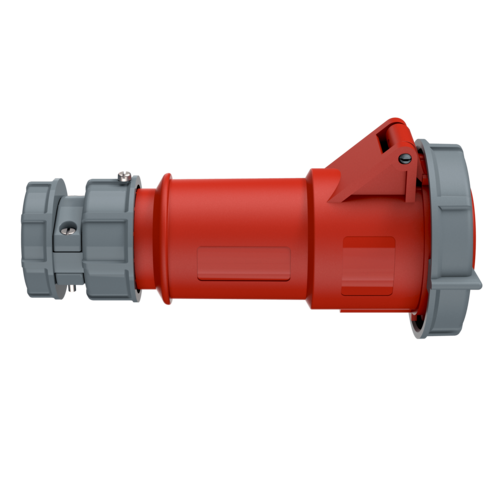

MENNEKES Connector PowerTOP 24558
MENNEKES Connector PowerTOP 24558 images3d

Connector PowerTOP 24558

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland an external cable grip
  • Part no.24558
  • EAN4015394130505
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP 24558

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
highly heat resistant contact carrier
Protection type IP67
Weight 274 g
Certifications VDE

Directives

Connector PowerTOP 24558

Appropriate accessories

Connector PowerTOP 24558

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP plugs and connectors
