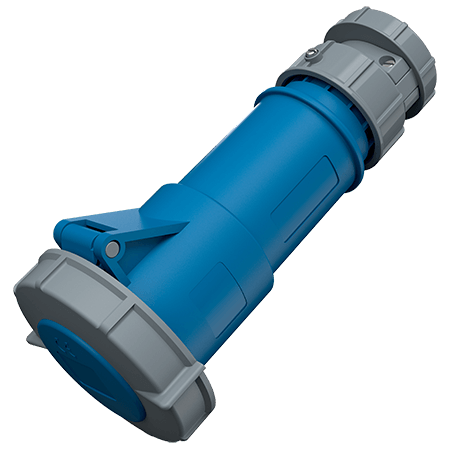

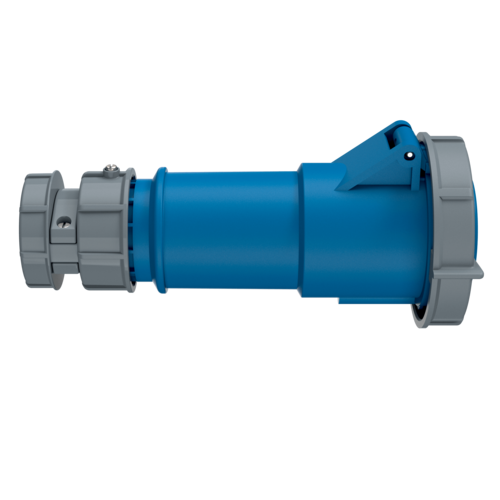

MENNEKES Connector PowerTOP 3888
MENNEKES Connector PowerTOP 3888 images3d

Connector PowerTOP 3888

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • cable gland and external cable grip
  • Part no.3888
  • EAN4015394115779
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector PowerTOP 3888

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
Protection type IP67
Weight 363 g
Certifications VDE

Directives

Connector PowerTOP 3888

Appropriate accessories

Connector PowerTOP 3888

MENNEKES Hanging clip 15453000

Hanging clip

Part no. 15453000

for PowerTOP plugs and connectors

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
