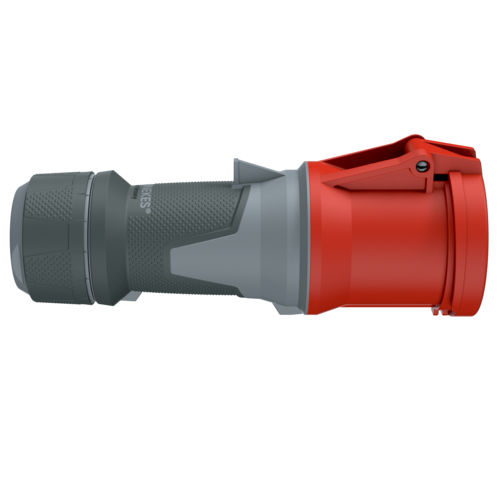

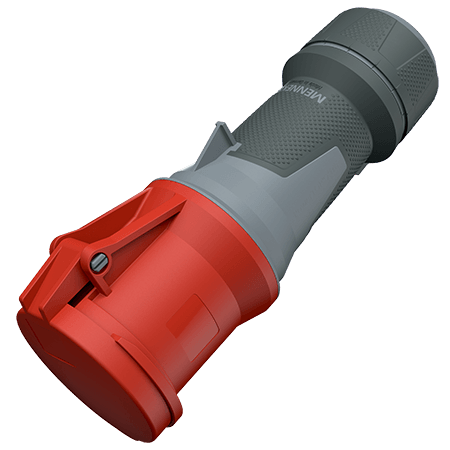

MENNEKES Connector PowerTOP Xtra 14129
MENNEKES Connector PowerTOP Xtra 14129 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra 14129

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • with rubberised grip area
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.14129
  • EAN4015394238218
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14129

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
X-CONTACT
Protection type IP54
Weight 802 g
Certifications VDE

Videos

Connector PowerTOP Xtra 14129

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Connector PowerTOP Xtra 14129

Frequently asked questions about the product

What does a 6 o'clock position indicate?

The clock position indicates the position of the protective earth (PE) conductor contact on the live end. More information can be found here
