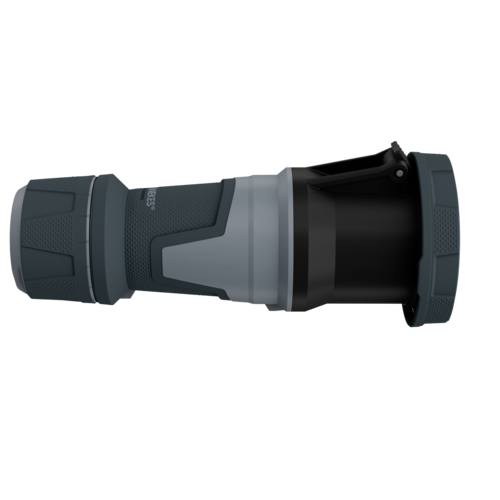

MENNEKES Connector PowerTOP Xtra 14220
MENNEKES Connector PowerTOP Xtra 14220 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra 14220

Poles
Voltage
Clock position
  • screw terminals
  • with rubberised grip area
  • frame terminals
  • X-CONTACT
  • highly heat resistant contact carrier
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • products with pilot contact on request
  • Part no.14220
  • EAN4015394241010
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra 14220

Ampere 125 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
X-CONTACT
Protection type IP67
Weight 1550 g
Certifications VDE
