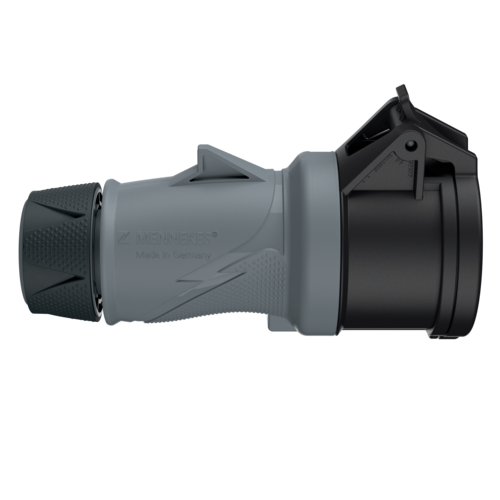

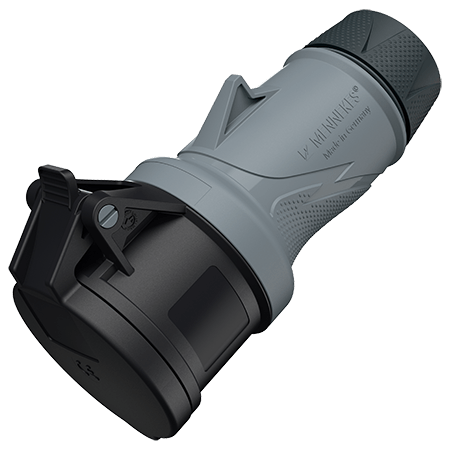

Connector PowerTOP Xtra R with ErgoCONTACT 14599
Regardless of configuration and application area – the PowerTOP® Xtra connectors have compelling, tried and tested features: Ergonomic design, ease of installation, safe/straightforward connection and X-CONTACT inside. PowerTOP® Xtra devices meet the requirements for the IP 54 protection class, meaning they are both splashproof and dustproof.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- X-CONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Connector PowerTOP Xtra R with ErgoCONTACT 14599
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals, ErgoCONTACT |
| Contact |
nickel plated contacts highly heat resistant contact carrier X-CONTACT |
| Protection type | IP54 |
| Weight | 215 g |
| Certifications |
VDE CQC |
Videos
Connector PowerTOP Xtra R with ErgoCONTACT 14599
Frequently asked questions about the product
What is ErgoCONTACT?
ErgoCONTACT refers to a specially enhanced, innovative, easy-to-use screw-contact technology that is available for plugs and sockets. It enables easy, secure, and time-saving installation. To this end, the screwdriver is inserted from the top instead of the side to apply pressure directly against the handle. The screw is additionally guided by a collar. This prevents it from slipping and minimizes the risk of injuries. Each contact has only one screw: a captive combination head screw that is integrated in the guide collar and can be turned using either a Phillips or flathead screwdriver. More information can be found here.
What does the suffix “R” stand for following the article description of the PowerTOP Xtra series?
Our 5-pin, 16A PowerTOP Xtra plugs and sockets are available as a PowerTOP Xtra R variant. The R stands for robust, high-heat resistant contact carriers and nickel-plated plug and connector contacts. The plug and socket device is therefore especially protected against high humidity and aggressive substances.
