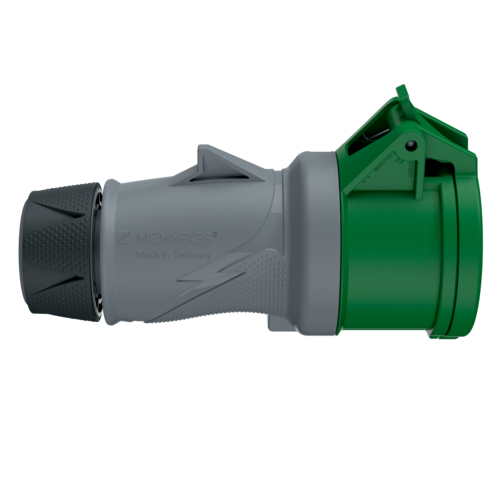

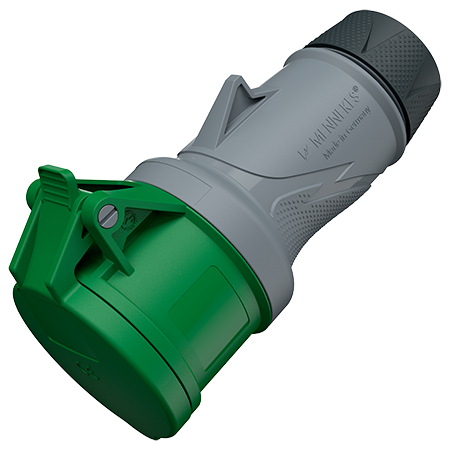

MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14508
MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14508 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Connector PowerTOP Xtra with ErgoCONTACT 14508

All versions of the PowerTOP Xtra connector deliver excellent results thanks to their ergonomic design, easy to install, safe and easy connection, and X-CONTACT inside. The innovative contact sleeves ensure easy insertion and withdrawal. The PowerTOP Xtra connector has IP 54 protection class and is therefore impervious to both water spray and dust.
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • X-CONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.14508
  • EAN4015394305545
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Connector PowerTOP Xtra with ErgoCONTACT 14508

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals, ErgoCONTACT
Contact X-CONTACT
Protection type IP54
Weight 254 g
