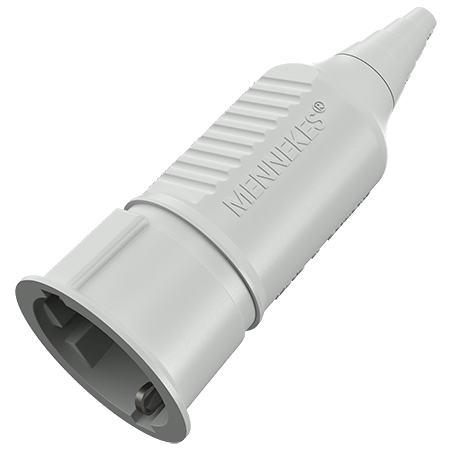

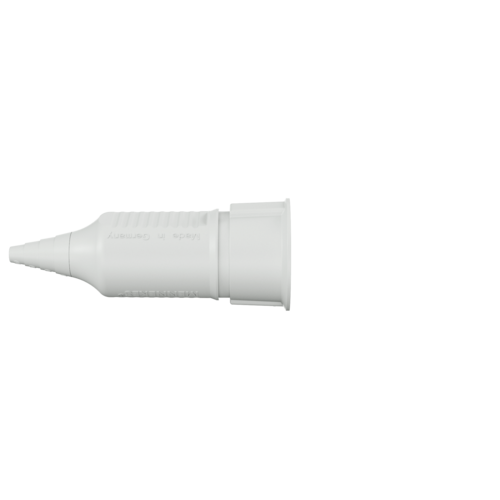

MENNEKES Connector SCHUKO® 10752
MENNEKES Connector SCHUKO® 10752 images3d

Connector SCHUKO® 10752

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with grommet
  • for cables up to 3 x 2.5 mm², up to H07RN-F
  • Part no.10752
  • EAN4015394034827
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Connector SCHUKO® 10752

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP20
Shutter No
Weight 78 g
Certifications VDE
EAC

Directives

Connector SCHUKO® 10752
