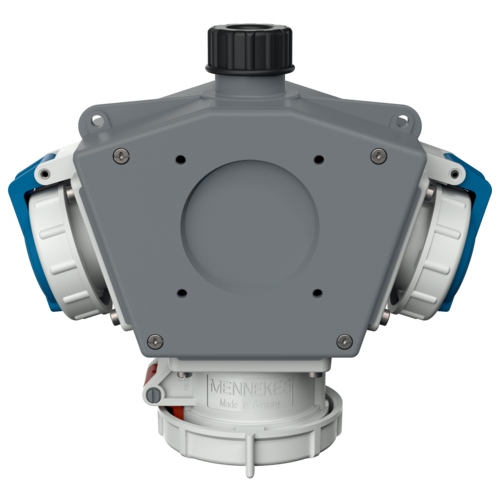

MENNEKES DELTA-BOX receptacle combination 83699
MENNEKES DELTA-BOX receptacle combination 83699 images3d

DELTA-BOX receptacle combination 83699

CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • with cable grip and installed hanging hook
  • Part no.83699
  • EAN4015394209225
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

DELTA-BOX receptacle combination 83699

CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 2
Connection/feeder cable
  • for 1 cable up to 5 x 6 mm²
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 920 g
Certifications EAC
CQC
Storage receptacle combination D

Directives

DELTA-BOX receptacle combination 83699

Appropriate accessories

DELTA-BOX receptacle combination 83699

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441
