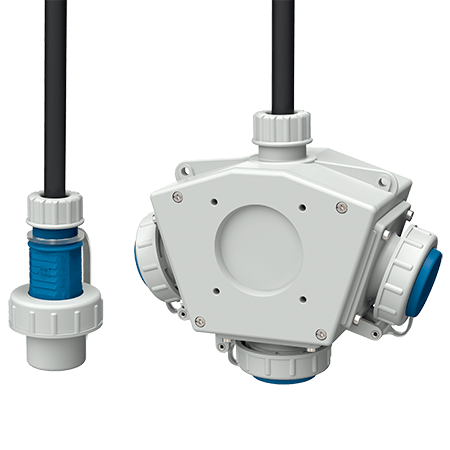

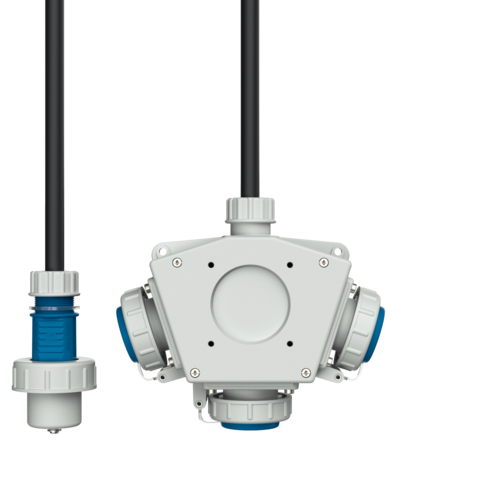

MENNEKES DELTA-BOX receptacle combination 92386
MENNEKES DELTA-BOX receptacle combination 92386 images3d

DELTA-BOX receptacle combination 92386

SCHUKO® 16 A, 230 V
  • pre-wired for installation
  • with cable grip and installed hanging hook
  • Part no.92386
  • EAN4015394087403
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

DELTA-BOX receptacle combination 92386

SCHUKO® 16 A, 230 V 3
Connection/feeder cable
  • 1.5 m H07RN-F3G2.5 with plug SCHUKO® 16 A, 230 V
Protection type IP68
Enclosure material Plastic
Weight 1242 g
Certifications EAC
Storage receptacle combination A

Directives

DELTA-BOX receptacle combination 92386

Appropriate accessories

DELTA-BOX receptacle combination 92386

MENNEKES Pneumatic connection 41440

Pneumatic connection

Part no. 41440

for DELTA-BOX, for tube diameter 9 mm, part no. 41440, for tube diameter 13 mm, part no. 41441

MENNEKES Pneumatic connection 41441

Pneumatic connection

Part no. 41441

for DELTA-BOX and mobile receptacle combinations

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey
