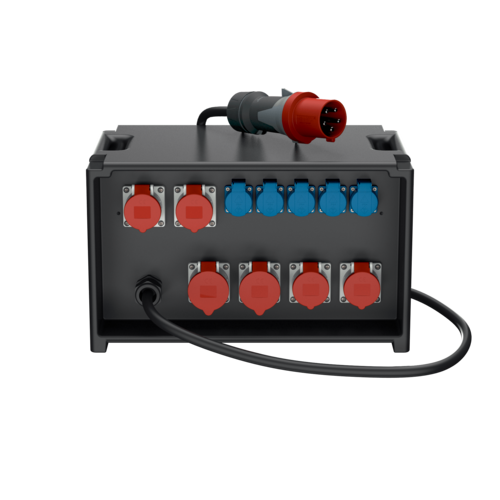

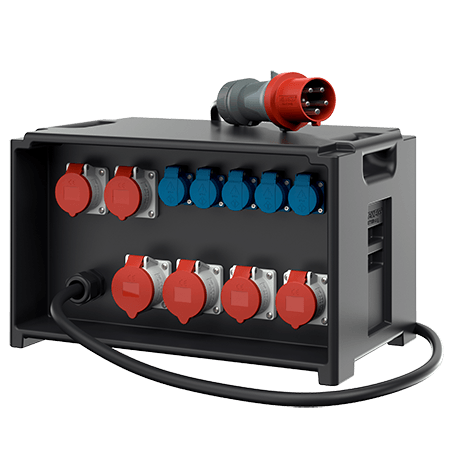

EverBOX 9500706
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- robust, watertight insulating enclosure, black RAL 9005
- pre-wired for installation
- fusing behind a transparent cover
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
EverBOX 9500706
| CEE 32 A, 5 p, 400 V | 2 |
|---|---|
| CEE 16 A, 5 p, 400 V | 4 |
| SCHUKO® 16 A, 230 V | 5 |
| Fusing |
|
| Pre-fuse max. | 63 A |
| InA | 63 A |
| RDF | 0.75 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Plastic |
| Weight | 20500 g |
| Length | 560 mm |
| Height | 340 mm |
| Width | 350 mm |
| Certifications | EAC |
| Storage receptacle combination | D |
