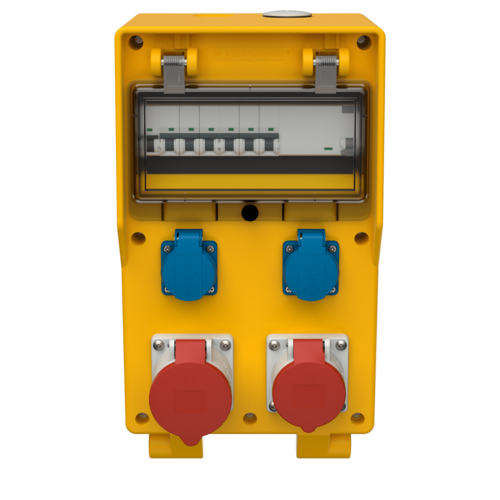

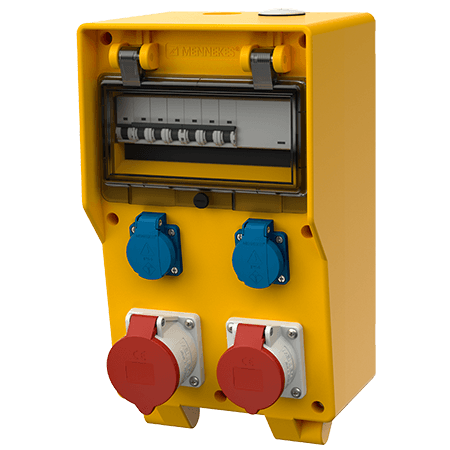

EverGUM receptacle combination 70005
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
- solid rubber enclosure, signal yellow RAL 1003
- pre-wired for installation
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
EverGUM receptacle combination 70005
| CEE 32 A, 5 p, 400 V | 1 |
|---|---|
| CEE 16 A, 5 p, 400 V | 1 |
| SCHUKO® 16 A, 230 V | 2 |
| Fusing |
|
| Pre-fuse max. | 100 A |
| InA | 45 A |
| RDF | 0.6 |
| Connection/feeder cable |
|
| Protection type | IP44 |
| Enclosure material | Solid rubber |
| Weight | 8460 g |
| Height | 380 mm |
| Width | 230 mm |
| Certifications | EAC |
| Storage receptacle combination | A |
Appropriate accessories
EverGUM receptacle combination 70005
Frequently asked questions about the product
Are there IP5x EverGUM products?
The standard IP protection classes for the EverGUM product series are IP 44 and IP 67. Another protection class can be considered on a case-by-case basis.
Can I order partially wired receptacle combinations from MENNNEKES?
We only offer completely wired receptacle combinations, whose quality and safety have been tested in accordance with the standard DIN EN/IEC 61439 .
Can I make changes to the receptacle combination or extend it?
Making a modification to the receptacle combination will make you the manufacturer of the product and you will have to assume full liability for the product.
Are receptacle combinations from MENNEKES tested and approved by the VDE institute (or equivalent body)?
Receptacle combinations from MENNEKES can be subject to various product standards. Usually, we manufacture product series in accordance with IEC 61439, IEC 60309 and VDE 0620.
Are there protection type IP5x EverGUM products?
The products of our EverGUM family fulfil the requirements for protection type IP44 as standard. We would be happy to check whether we could equip an EverGUM product so that it meets the requirements for another protection type as a special solution.
