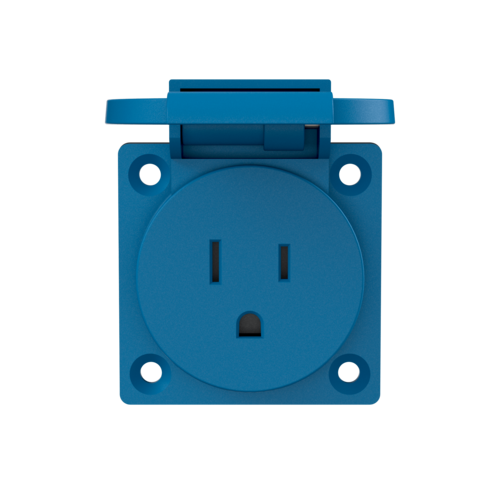

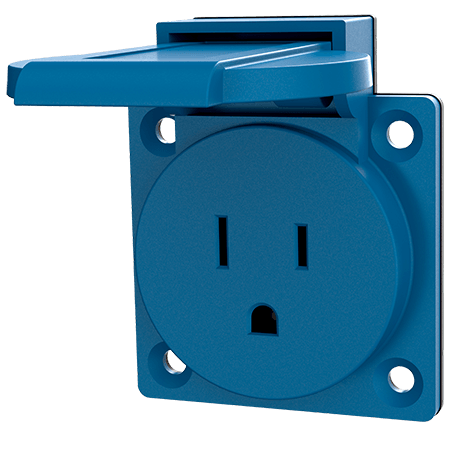

MENNEKES Grounding type panel mounted receptacle 10087
MENNEKES Grounding type panel mounted receptacle 10087 images3d

Grounding type panel mounted receptacle 10087

Ampere 15 A
Poles
Voltage
  • NEMA for the USA and Canada
  • with hinged lid
  • with 3 srew terminals
  • receptacle cannot be combined with enclosure base part no. 10714, 10715 or 10716
  • Part no.10087
  • EAN4015394162773
  • Std. Pack. 20

Technical specifications

Grounding type panel mounted receptacle 10087

Ampere 15 A
Poles 2 p+E
Voltage 125 V
Connection technology Screw terminals
Contact standard
Protection type IP44
Shutter No
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 45 g
Certifications EAC

Datasheets & Downloads

Grounding type panel mounted receptacle 10087

Product infoGrounding type panel mounted receptacle 10087 PDF, 153 KB
CAD data STPGrounding type panel mounted receptacle 10087 ZIP, 188 KB
CAD data 3D DWGGrounding type panel mounted receptacle 10087 ZIP, 509 KB
Dimensional drawing portraitGrounding type panel mounted receptacle 10087 PNG, 64 KB
Dimensional drawing landscape formatGrounding type panel mounted receptacle 10087 PNG, 64 KB

Directives

Grounding type panel mounted receptacle 10087

REACh
RoHS
