Show all Grounding types according to various national standards / Show all Grounding-type panel mounted receptacle

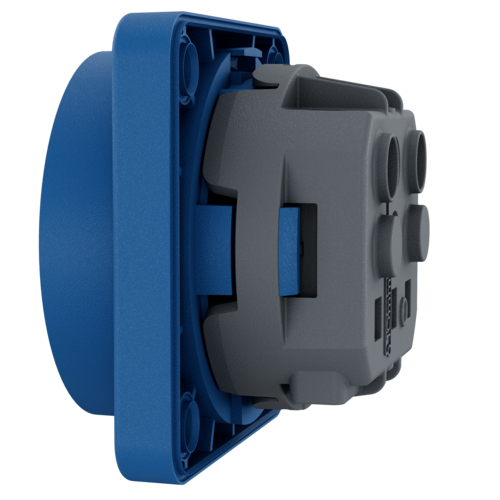

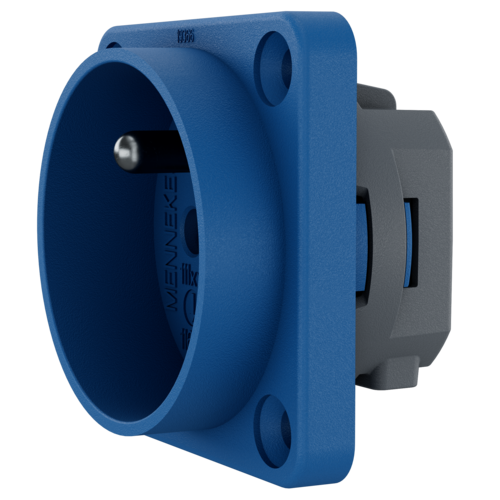

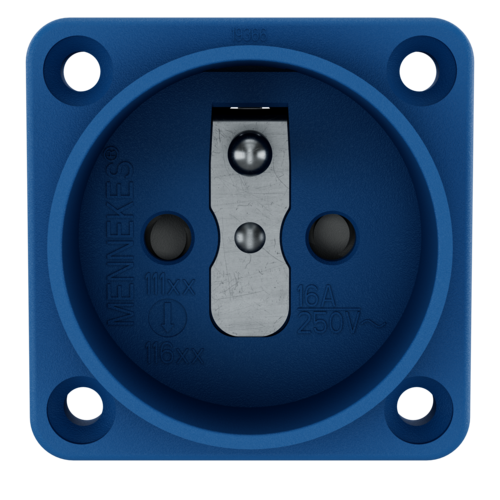

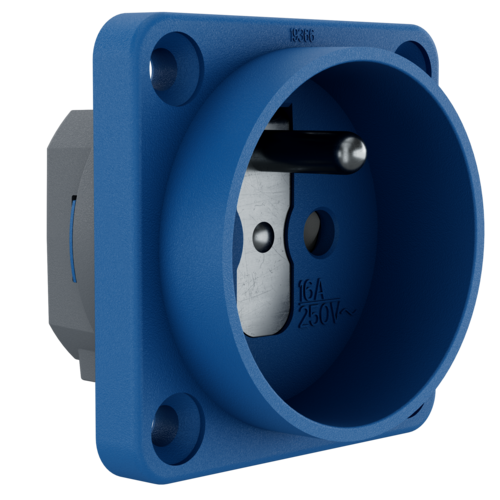

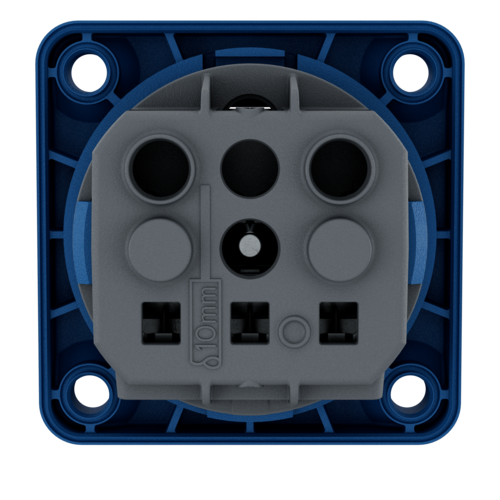

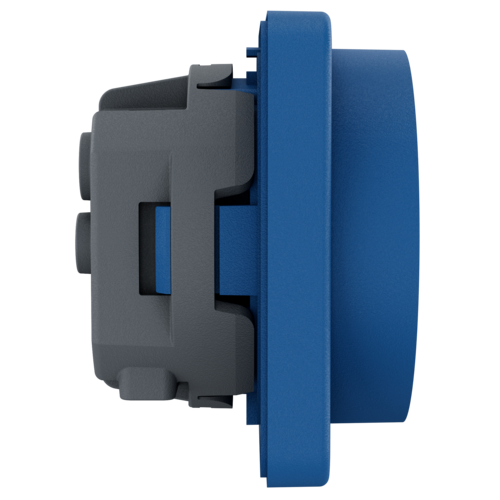

MENNEKES Grounding-type panel mounted receptacle 11661
MENNEKES Grounding-type panel mounted receptacle 11661 images3d

Grounding-type panel mounted receptacle 11661

Ampere 16 A
Poles
Voltage
  • French-belgian standard
  • without hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 - 2.5 mm²
  • other colours on request
  • Part no.11661
  • EAN4015394193159
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Grounding-type panel mounted receptacle 11661

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP20
Shutter Yes
Flange 50x50 mm
Fixing hole 38x38 mm
Weight 31 g
Certifications EAC

Datasheets & Downloads

Grounding-type panel mounted receptacle 11661

Product infoGrounding-type panel mounted receptacle 11661 PDF, 182 KB
CAD data STPGrounding-type panel mounted receptacle 11661 ZIP, 683 KB
CAD data 3D DWGGrounding-type panel mounted receptacle 11661 ZIP, 1 MB
Dimensional drawing portraitGrounding-type panel mounted receptacle 11661 PNG, 34 KB
Dimensional drawing landscape formatGrounding-type panel mounted receptacle 11661 PNG, 80 KB

Directives

Grounding-type panel mounted receptacle 11661

REACh
RoHS

Appropriate accessories

Grounding-type panel mounted receptacle 11661

MENNEKES Base for wall mounted receptacle 10715

Base for wall mounted receptacle

Part no. 10715

with cable entry and screws, suitable for all panel mounted receptacles SCHUKO®/ grounding type receptacles, flange: 50 x 50 mm
