MENNEKES

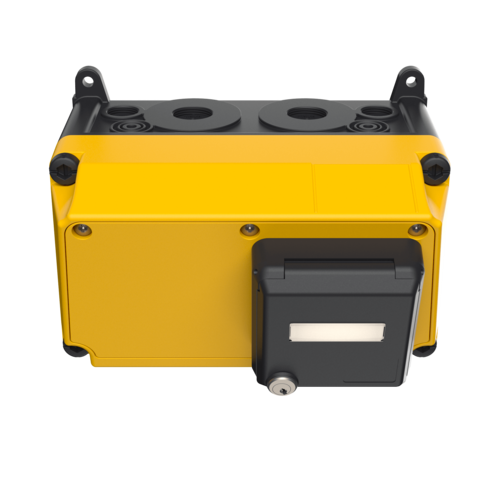

MENNEKES Network enclosure AMAXX 25104GE
MENNEKES Network enclosure AMAXX 25104GE images3d

Please accept marketing-cookies to watch this video.

Video varieties

Network enclosure AMAXX 25104GE

  • network enclosure made of AMAPLAST
  • protection class IP 44
  • top part electric grey RAL 7035 or yellow RAL 1021, bottom part black with screw-in nuts for installation of a floor-mounted base
  • including a height-adjustable mounting rail
  • cable gland set with multiple seal
  • Part no.25104GE
  • EAN4015394240648
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Network enclosure AMAXX 25104GE

Data port sockets 1 Cepex data port socket prepared for 2 RJ45 connection module couplings, type E-DAT module, port, cat.6, brand: BTR (part no. 41455) or OpDAT module LC or ST (brand BTR - not delivery contains)
Connection/feeder cable
  • each x M 25 top and bottom (sealed)
  • each x M 20 top and bottom (sealed)
  • cable gland M 25 bottom (multiple seal with 3 openings for a cable diameter of 5-7 mm including suitable blanking plugs, 1 cap-shape seal blank for punched hole)
Protection type IP44
Enclosure material Plastic
Weight 1206 g
Height 130 mm
Width 225 mm
Certifications EAC

Videos

Network enclosure AMAXX 25104GE

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Network enclosure AMAXX 25104GE

Frequently asked questions about the product

How can I get spare parts for AMAXX?

Please let us know the part number of the AMAXX receptacle combination and the exact spare part that you need. We will make every effort to accommodate your request as quickly as possible and to send you the desired spare parts.

The person to contact can be found here.

Where do I find the approval number?

The approval number of our products is located inside the enclosure. For products of the AMAXX family, there is also an inspection tag in the window.

To the questions and answers
