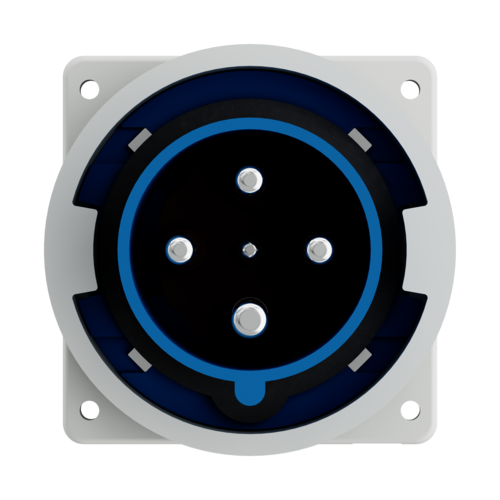

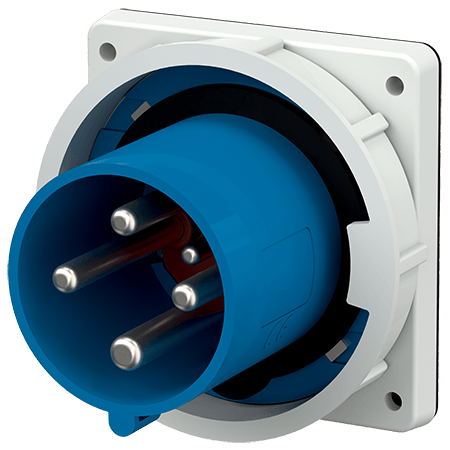

MENNEKES Panel mounted inlet 3704
MENNEKES Panel mounted inlet 3704 images3d

Panel mounted inlet 3704

Poles
Voltage
Clock position
  • screw terminals
  • with highly heat resistant contact carrier
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.3704
  • EAN4015394021001
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 3704

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 531 g
Certifications CQC

Directives

Panel mounted inlet 3704

Appropriate accessories

Panel mounted inlet 3704

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
