Show all 160 A to 600 A / Show all Panel mounted inlet

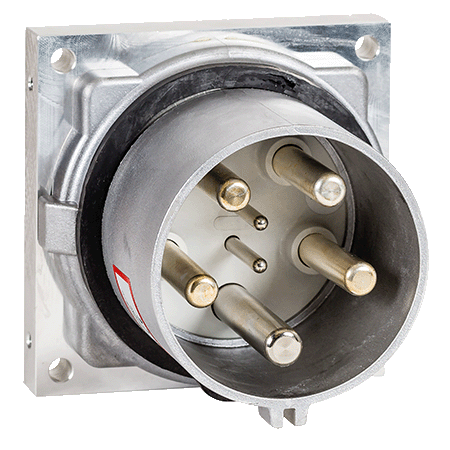

MENNEKES Panel mounted inlet 75266

Panel mounted inlet 75266

Ampere 200 A
Poles
Voltage
Clock position
  • aluminum enclosure
  • Screw terminals
  • seawater resistant products are available on request
  • Part no.75266
  • EAN4015394055679
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 75266

Ampere 200 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 2381 g
Certifications EAC

Datasheets & Downloads

Panel mounted inlet 75266

Product infoPanel mounted inlet 75266 PDF, 126 KB
CAD data STPPanel mounted inlet 75266 ZIP, 890 KB
CAD data 3D DWGPanel mounted inlet 75266 ZIP, 1 MB
Dimensional drawing portraitPanel mounted inlet 75266 PNG, 49 KB
Dimensional drawing landscape formatPanel mounted inlet 75266 PNG, 50 KB

Directives

Panel mounted inlet 75266

REACh
RoHS
