Show all Inlets
/
Show all Panel mounted inlet

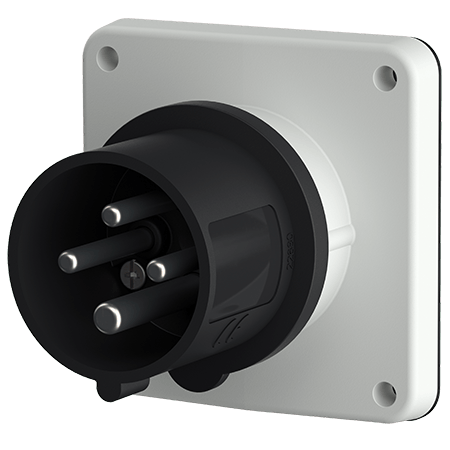

Panel mounted inlet 814
Ampere
16 A
32 A
Poles
3 p
4 p
5 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
nickel-plated contacts
a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Part no.
814
EAN
4015394116738
Std. Pack.
10
Add to shopping basket
Technical specifications
Panel mounted inlet 814
Ampere
16 A
Poles
4 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
nickel plated contacts
Protection type
IP44
Weight
157 g
Certifications
VDE (ÜG)
CQC
Datasheets & Downloads
Panel mounted inlet 814
Product info
Panel mounted inlet 814
PDF, 183 KB
Dimensional drawing portrait
Panel mounted inlet 814
PNG, 97 KB
Dimensional drawing landscape format
Panel mounted inlet 814
PNG, 98 KB
Directives
Panel mounted inlet 814
REACh
RoHS
