Show all Inlets / Show all Panel mounted inlet

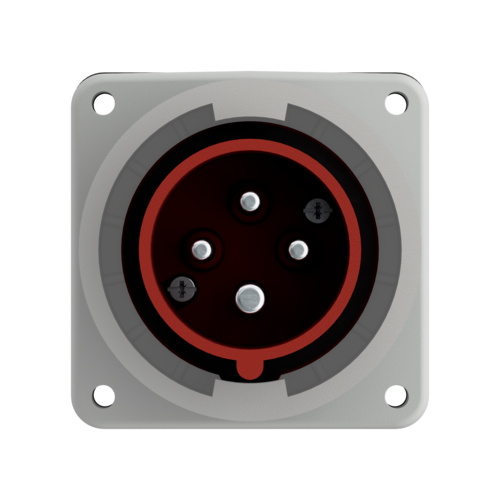

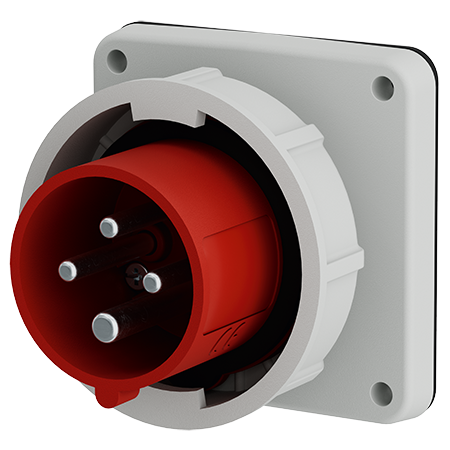

MENNEKES Panel mounted inlet 832
MENNEKES Panel mounted inlet 832 images3d

Panel mounted inlet 832

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.832
  • EAN4015394116899
  • Std. Pack. 10

Technical specifications

Panel mounted inlet 832

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP67
Weight 256 g
Certifications VDE (ÜG)
CQC

Datasheets & Downloads

Panel mounted inlet 832

Product infoPanel mounted inlet 832 PDF, 305 KB
Manufacturer‘s declarationPanel mounted inlet 832 PDF, 37 KB
CAD data STPPanel mounted inlet 832 ZIP, 164 KB
CAD data 3D DWGPanel mounted inlet 832 ZIP, 723 KB
Dimensional drawing portraitPanel mounted inlet 832 PNG, 106 KB
Dimensional drawing landscape formatPanel mounted inlet 832 PNG, 107 KB

Directives

Panel mounted inlet 832

REACh
RoHS

Appropriate accessories

Panel mounted inlet 832

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets 32 A, 3 p + 4 p
