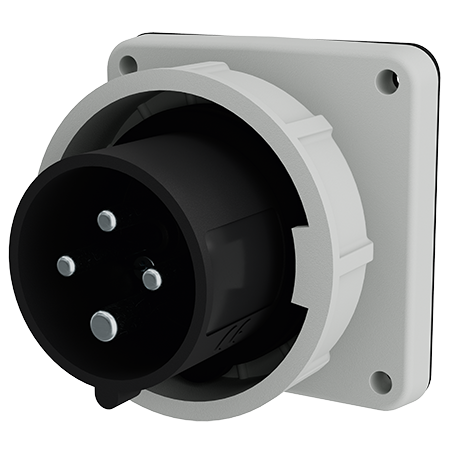

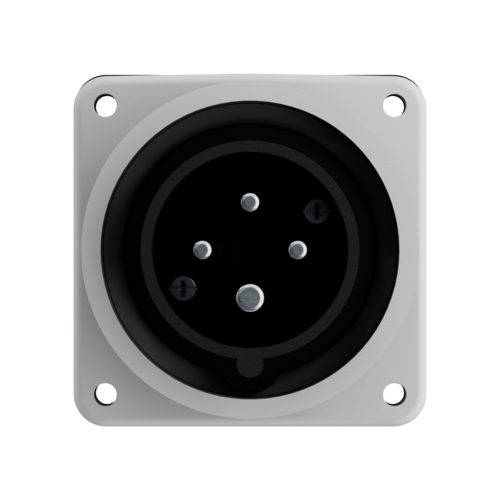

MENNEKES Panel mounted inlet 833
MENNEKES Panel mounted inlet 833 images3d

Panel mounted inlet 833

Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.833
  • EAN4015394116905
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 833

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP67
Weight 256 g
Certifications VDE (ÜG)
CQC

Directives

Panel mounted inlet 833

Appropriate accessories

Panel mounted inlet 833

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets 32 A, 3 p + 4 p
