MENNEKES Panel mounted inlet 853SW

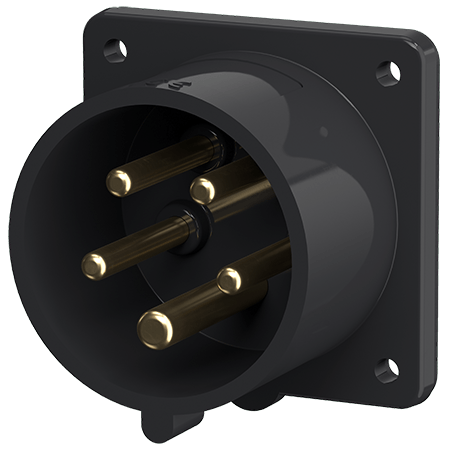

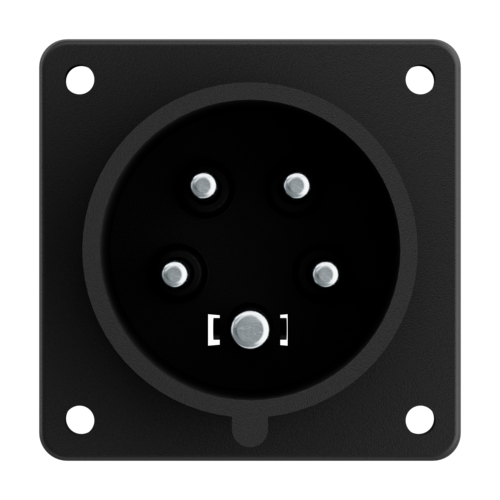

MENNEKES Panel mounted inlet 853SW images3d

Panel mounted inlet 853SW

Poles
Voltage
Clock position
  • screw terminals
  • nickel plated contacts
  • a retaoning nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
  • Part no.853SW
  • EAN4015394233220
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet 853SW

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
Protection type IP44
Weight 120 g

Directives

Panel mounted inlet 853SW
