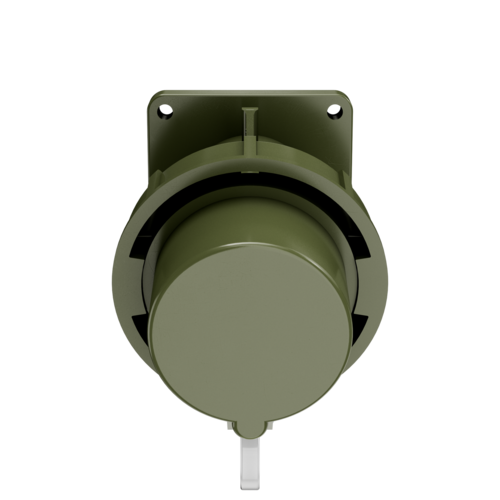

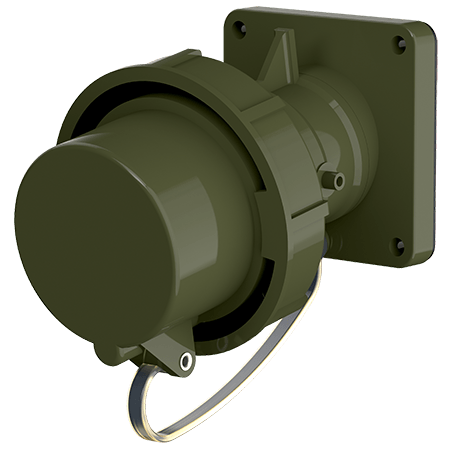

MENNEKES Panel mounted inlet TM 20462
MENNEKES Panel mounted inlet TM 20462 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted inlet TM 20462

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form BP)
  • Part no.20462
  • EAN4015394038863
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet TM 20462

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 400 g
Certifications VDE

Datasheets & Downloads

Panel mounted inlet TM 20462

Product infoPanel mounted inlet TM 20462 PDF, 178 KB
Manufacturer‘s declarationPanel mounted inlet TM 20462 PDF, 37 KB
CAD data STPPanel mounted inlet TM 20462 ZIP, 192 KB
CAD data 3D DWGPanel mounted inlet TM 20462 ZIP, 305 KB
Dimensional drawing portraitPanel mounted inlet TM 20462 PNG, 46 KB
Dimensional drawing landscape formatPanel mounted inlet TM 20462 PNG, 119 KB

Videos

Panel mounted inlet TM 20462

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted inlet TM 20462

REACh
RoHS

Appropriate accessories

Panel mounted inlet TM 20462

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p
