Show all Panel mounted receptacles
/
Show all Panel mounted receptacle
Please
accept marketing-cookies
to watch this video.

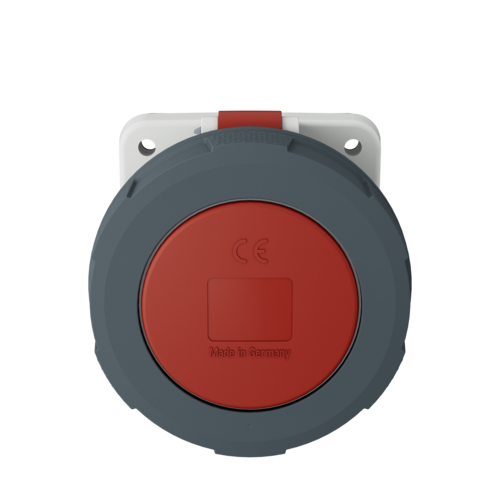

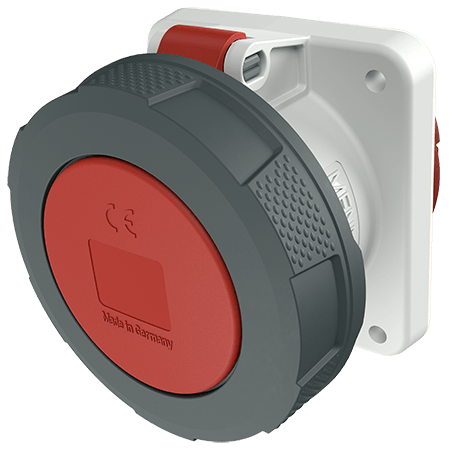

Panel mounted receptacle 1124A
Ampere
63 A
125 A
Poles
3 p
4 p
5 p
Voltage
110 V
230 V
400 V
500 V
Clock position
4 h
6 h
7 h
9 h
screw terminals
X-CONTACT
straight
receptacles with pilot contact: part no. + index P
Part no.
1124A
EAN
4015394007531
Std. Pack.
5
Add to shopping basket
Technical specifications
Panel mounted receptacle 1124A
Ampere
63 A
Poles
4 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
X-CONTACT
Protection type
IP67
Flange
107x100 mm
Fixing hole
85x77 mm
Weight
604 g
Certifications
VDE
Datasheets & Downloads
Panel mounted receptacle 1124A
Product info
Panel mounted receptacle 1124A
PDF, 180 KB
Manufacturer‘s declaration
Panel mounted receptacle 1124A
PDF, 37 KB
CAD data STP
Panel mounted receptacle 1124A
ZIP, 1 MB
CAD data 3D DWG
Panel mounted receptacle 1124A
ZIP, 3 MB
Dimensional drawing portrait
Panel mounted receptacle 1124A
PNG, 94 KB
Dimensional drawing landscape format
Panel mounted receptacle 1124A
PNG, 94 KB
Videos
Panel mounted receptacle 1124A
Please
accept marketing-cookies
to watch this video.
Directives
Panel mounted receptacle 1124A
REACh
RoHS
